0545502071

Affinity Medical Technologies - a Molex company

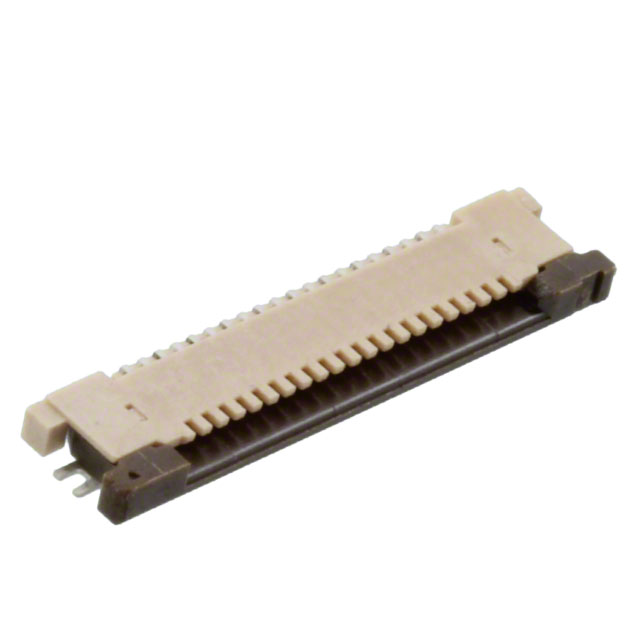

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0545502071
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC TOP 20POS 0.50MM R/A
Datasheets:	0545502071.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	35571 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 35571 pcs

Reference Price (In US Dollars)

1 pcs: $0.881

10 pcs: $0.801

25 pcs: $0.752

50 pcs: $0.719

100 pcs: $0.687

250 pcs: $0.621

500 pcs: $0.572

1000 pcs: $0.491

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.881

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0545502071

Part Number	0545502071	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC TOP 20POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35571 pcs	Data sheet	0545502071.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 54550	Pitch	0.020" (0.50mm)
Packaging	Cut Tape (CT)	Other Names	WM6791CT
Operating Temperature	-20°C ~ 85°C	Number of Positions	20
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP)
Housing Color	-	Height Above Board	0.047" (1.20mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	20 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Top	Cable End Type	Straight, Tapered
Actuator Material	Polyphenylene Sulfide (PPS)	Actuator Color	-
