0545480771

Affinity Medical Technologies - a Molex company

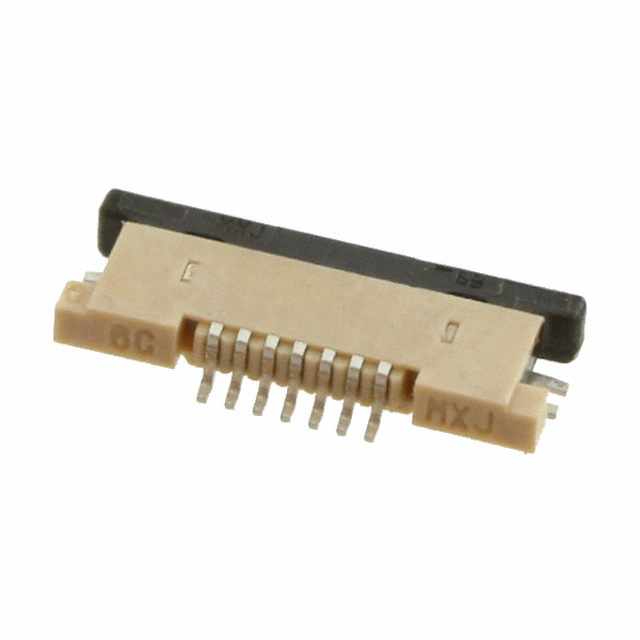

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0545480771
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC BOTTOM 7POS 0.50MM R/A
Datasheets:	1.0545480771.pdf 2.0545480771.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	79976 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 79976 pcs

Reference Price (In US Dollars)

1 pcs: $0.488

10 pcs: $0.444

25 pcs: $0.417

50 pcs: $0.399

100 pcs: $0.381

250 pcs: $0.344

500 pcs: $0.317

1000 pcs: $0.272

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.488

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0545480771

Part Number	0545480771	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC BOTTOM 7POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	79976 pcs	Data sheet	1.0545480771.pdf 2.0545480771.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 54548	Pitch	0.020" (0.50mm)
Packaging	Original-Reel®	Other Names	WM8842DKR
Operating Temperature	-20°C ~ 85°C	Number of Positions	7
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	12 Weeks	Locking Feature	Flip Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Liquid Crystal Polymer (LCP)
Housing Color	-	Height Above Board	0.047" (1.20mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	7 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Straight, Tapered
Actuator Material	Polyphenylene Sulfide (PPS)	Actuator Color	-
