0541323233

Affinity Medical Technologies - a Molex company

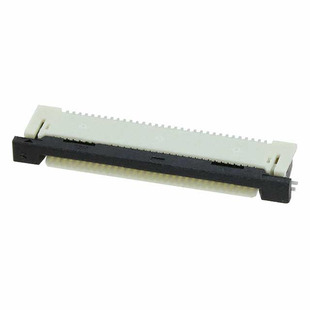

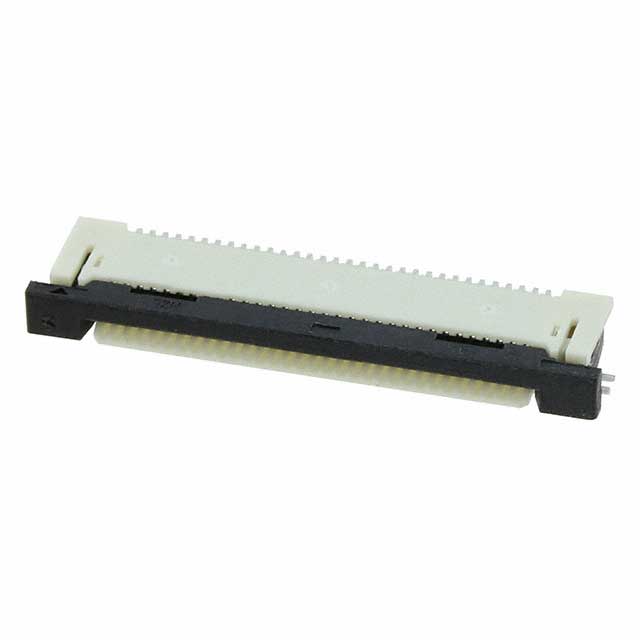

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0541323233
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC BOTTOM 32POS 0.50MM R/A
Datasheets:	0541323233.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34473 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 34473 pcs

Reference Price (In US Dollars)

1 pcs: $0.849

10 pcs: $0.771

25 pcs: $0.724

50 pcs: $0.692

100 pcs: $0.661

250 pcs: $0.598

500 pcs: $0.551

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.849

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0541323233

Part Number	0541323233	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC BOTTOM 32POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34473 pcs	Data sheet	0541323233.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 54132	Pitch	0.020" (0.50mm)
Packaging	Original-Reel®	Other Names	WM11095DKR
Operating Temperature	-40°C ~ 85°C	Number of Positions	32
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	19 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA), Nylon, Glass Filled
Housing Color	Natural	Height Above Board	0.079" (2.00mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	32 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	39.4µin (1.00µm)	Contact Finish	Tin Bismuth
Connector/Contact Type	Contacts, Bottom	Cable End Type	Straight, Tapered
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled	Actuator Color	Black
