0533750310

Affinity Medical Technologies - a Molex company

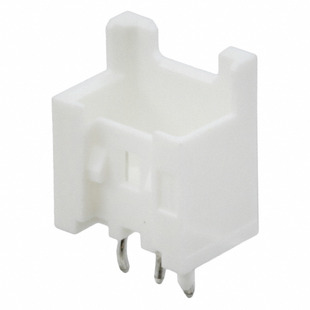

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0533750310
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HDR 3POS 2.5 W/KINK
Datasheets:	0533750310.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	196651 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 196651 pcs

Reference Price (In US Dollars)

1 pcs: $0.184

10 pcs: $0.174

100 pcs: $0.133

500 pcs: $0.116

1000 pcs: $0.096

5000 pcs: $0.084

10000 pcs: $0.078

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.184

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0533750310

Part Number	0533750310	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HDR 3POS 2.5 W/KINK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	196651 pcs	Data sheet	0533750310.pdf
Voltage Rating	-	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Lock 53375	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	053375-0310 0533750310-ND 53375-0310 533750310 WM9816
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBTP)	Insulation Height	0.453" (11.50mm)
Insulation Color	White	Ingress Protection	-
Features	Board Guide	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 3 position 0.098" (2.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Phosphor Bronze	Contact Length - Post	0.134" (3.40mm)
Contact Length - Mating	0.157" (4.00mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	39.4µin (1.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial
