0533250560

Affinity Medical Technologies - a Molex company

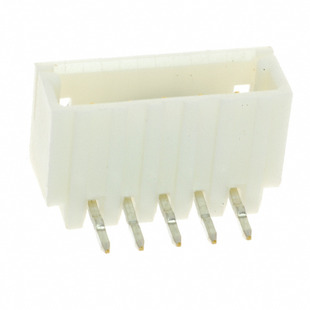

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0533250560
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 2MM 5POS R/A TIN
Datasheets:	0533250560.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	368089 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 368089 pcs

Reference Price (In US Dollars)

12000 pcs: $0.105

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.105

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0533250560

Part Number	0533250560	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 2MM 5POS R/A TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	368089 pcs	Data sheet	0533250560.pdf
Voltage Rating	-	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mi II 53325	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	053325-0560 53325-0560 533250560 WM8329 WM8329-ND
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.191" (4.85mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole, Right Angle 5 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.136" (3.45mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
