0533133065

Affinity Medical Technologies - a Molex company

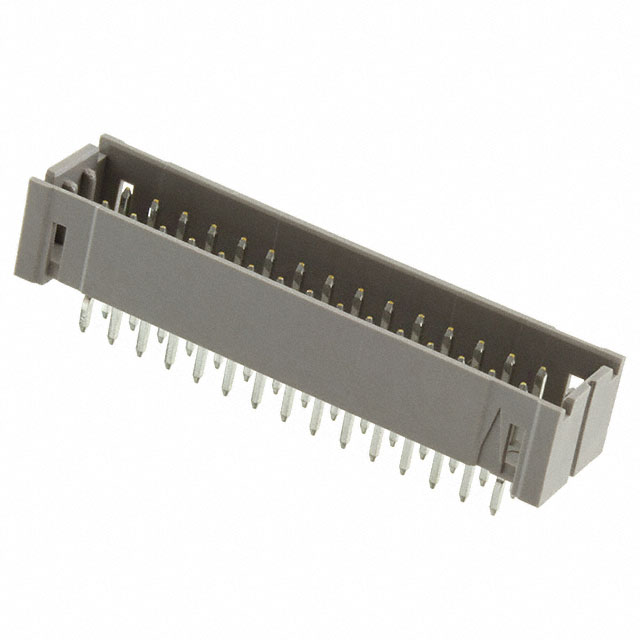

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0533133065
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 30POS 2MM VERT TIN
Datasheets:	0533133065.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10347 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10347 pcs

Reference Price (In US Dollars)

1 pcs: $3.175

10 pcs: $3.037

100 pcs: $2.554

560 pcs: $2.14

1120 pcs: $1.891

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.175

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0533133065

Part Number	0533133065	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 30POS 2MM VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10347 pcs	Data sheet	0533133065.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mi II 53313	Row Spacing - Mating	0.098" (2.50mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	53313-3065 53313-3065-ND WM12382
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	30
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.256" (6.50mm)
Insulation Color	Gray	Ingress Protection	-
Features	Board Guide	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 30 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.150" (3.81mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	78.7µin (2.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
