0532611271

Affinity Medical Technologies - a Molex company

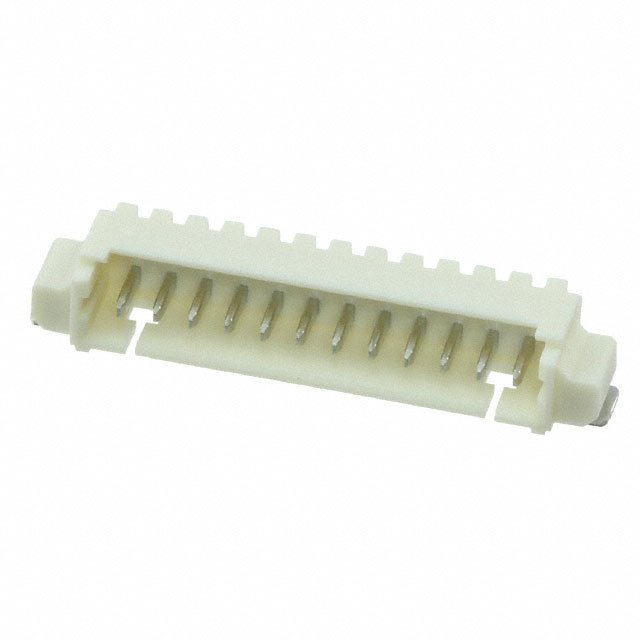

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0532611271
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 12POS 1.25MM R/A SMD
Datasheets:	1.0532611271.pdf 2.0532611271.pdf 3.0532611271.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	40137 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 40137 pcs

Reference Price (In US Dollars)

1 pcs: $0.795

10 pcs: $0.722

100 pcs: $0.619

500 pcs: $0.516

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.795

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0532611271

Part Number	0532611271	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 12POS 1.25MM R/A SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	40137 pcs	Data sheet	1.0532611271.pdf 2.0532611271.pdf 3.0532611271.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	PicoBlade 53261	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Original-Reel®
Overall Contact Length	-	Other Names	WM7630DKR
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA46), Nylon 4/6	Insulation Height	0.134" (3.40mm)
Insulation Color	Natural	Ingress Protection	-
Features	Solder Retention	Fastening Type	Detent Lock
Detailed Description	Connector Header Surface Mount, Right Angle 12 position 0.049" (1.25mm)	Current Rating	-
Contact Type	Male Blade	Contact Shape	Rectangular
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	39.4µin (1.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical
