0532541270

Affinity Medical Technologies - a Molex company

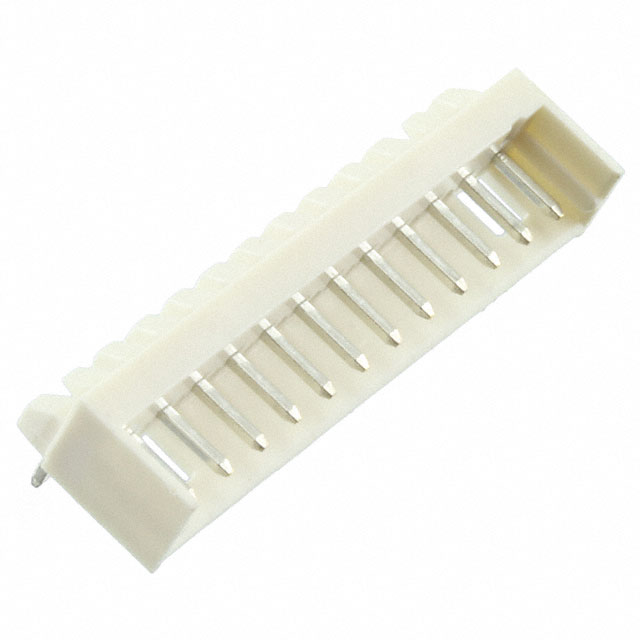

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0532541270
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER R/A 2MM 12POS T/H
Datasheets:	0532541270.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	181800 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 181800 pcs

Reference Price (In US Dollars)

1 pcs: $0.213

10 pcs: $0.20

100 pcs: $0.154

800 pcs: $0.12

1600 pcs: $0.107

5600 pcs: $0.097

10400 pcs: $0.09

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.213

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0532541270

Part Number	0532541270	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER R/A 2MM 12POS T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	181800 pcs	Data sheet	0532541270.pdf
Voltage Rating	-	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 3 Wall
Series	Micro-Latch 53254	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0532-54-1270 053254-1270 0532541270-ND 532-54-1270 53254-1270 532541270 WM12268
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	-	Insulation Height	0.165" (4.20mm)
Insulation Color	-	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole, Right Angle 12 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.130" (3.30mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose
