0530471010

Affinity Medical Technologies - a Molex company

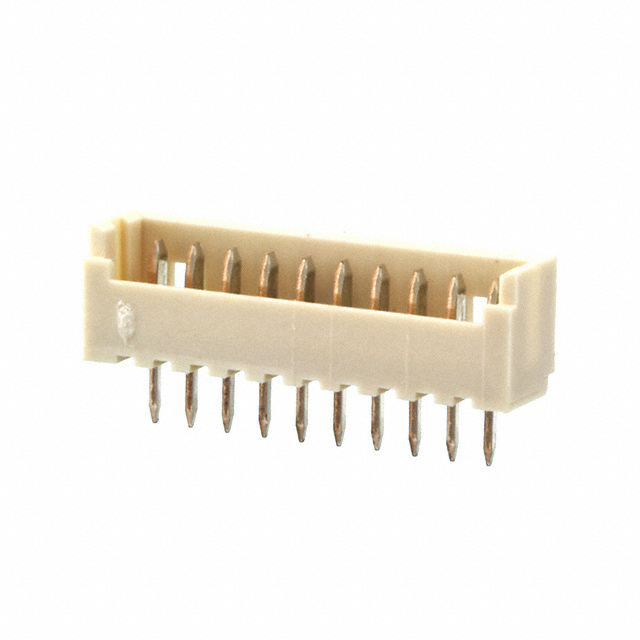

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0530471010
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 10POS 1.25MM STR TIN
Datasheets:	0530471010.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	104115 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 104115 pcs

Reference Price (In US Dollars)

1 pcs: $0.293

10 pcs: $0.258

100 pcs: $0.223

500 pcs: $0.182

1000 pcs: $0.162

8000 pcs: $0.135

16000 pcs: $0.132

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.293

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0530471010

Part Number	0530471010	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 10POS 1.25MM STR TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	104115 pcs	Data sheet	0530471010.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	PicoBlade 53047	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Tray
Overall Contact Length	-	Other Names	053047-1010 053047-1010-C 0530471010-C 530-47-1010-P 53047-1010 53047-1010-C 53047-1010-CL100 530471010 530471010-C WM1739
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	23 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.165" (4.20mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole 10 position 0.049" (1.25mm)	Current Rating	-
Contact Type	Male Blade	Contact Shape	Rectangular
Contact Material	Phosphor Bronze	Contact Length - Post	0.091" (2.30mm)
Contact Length - Mating	0.089" (2.25mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	35.4µin (0.90µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical
