0530141410

Affinity Medical Technologies - a Molex company

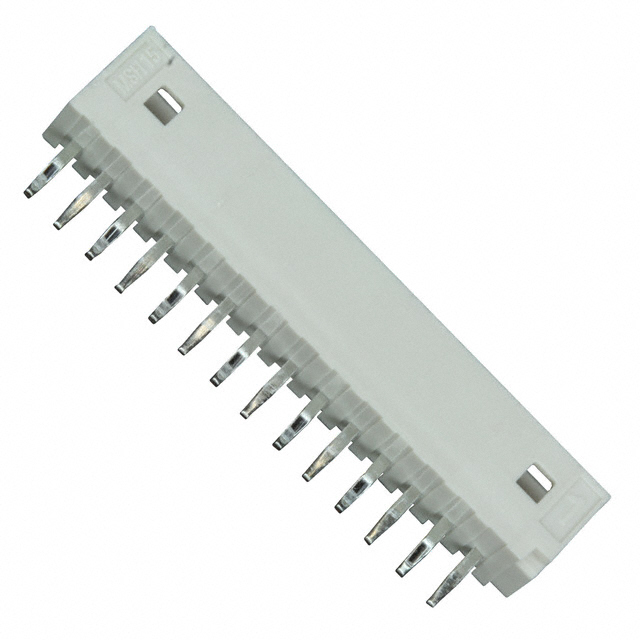

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0530141410
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 2MM 14POS TIN
Datasheets:	0530141410.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6270 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6270 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0530141410

Part Number	0530141410	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 2MM 14POS TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6270 pcs	Data sheet	0530141410.pdf
Voltage Rating	-	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MicroBlade 53014	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Bulk
Overall Contact Length	0.327" (8.30mm)	Other Names	053014-1410 053014-1410-E 0530141410-E 53014-1410 53014-1410-E 530141410 530141410-E WM18977
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Insulation Height	0.230" (5.85mm)	Insulation Color	Natural
Ingress Protection	-	Features	-
Fastening Type	Detent Lock	Detailed Description	Connector Header Through Hole 14 position 0.079" (2.00mm)
Current Rating	-	Contact Type	Male Blade
Contact Shape	Rectangular	Contact Material	Phosphor Bronze
Contact Length - Post	0.138" (3.50mm)	Contact Length - Mating	0.122" (3.10mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose, Telecommunications
