0528932095

Affinity Medical Technologies - a Molex company

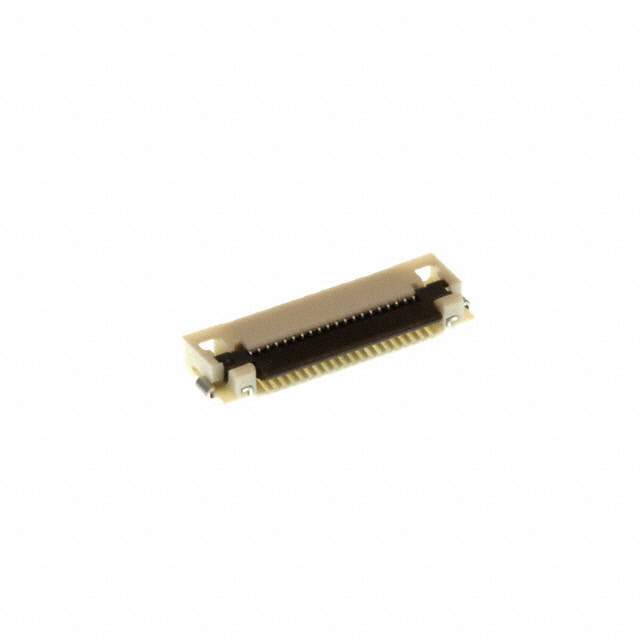

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0528932095
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC BOTTOM 20POS 0.50MM R/A
Datasheets:	0528932095.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	65504 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 65504 pcs

Reference Price (In US Dollars)

1 pcs: $0.556

10 pcs: $0.504

25 pcs: $0.473

50 pcs: $0.452

100 pcs: $0.432

250 pcs: $0.39

500 pcs: $0.36

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.556

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0528932095

Part Number	0528932095	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC BOTTOM 20POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	65504 pcs	Data sheet	0528932095.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 52893	Pitch	0.020" (0.50mm)
Packaging	Cut Tape (CT)	Other Names	WM3410CT
Operating Temperature	-25°C ~ 85°C	Number of Positions	20
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	22 Weeks	Locking Feature	Flip Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Housing Color	White	Height Above Board	0.079" (2.00mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	20 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	39.4µin (1.00µm)	Contact Finish	Tin Bismuth
Connector/Contact Type	Contacts, Bottom	Cable End Type	Straight, Tapered
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled	Actuator Color	Brown
