0528521472

Affinity Medical Technologies - a Molex company

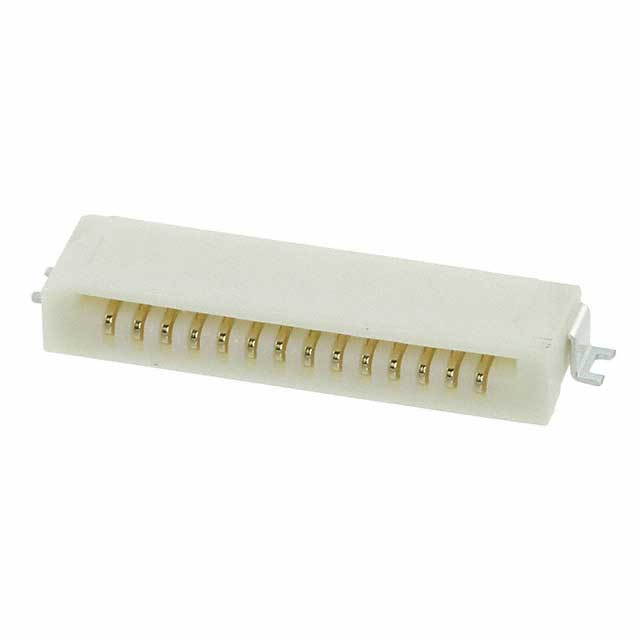

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0528521472
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC BOTTOM 14POS 1.00MM R/A
Datasheets:	0528521472.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	122029 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 122029 pcs

Reference Price (In US Dollars)

1 pcs: $0.303

10 pcs: $0.267

25 pcs: $0.251

50 pcs: $0.241

100 pcs: $0.23

250 pcs: $0.209

500 pcs: $0.188

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.303

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0528521472

Part Number	0528521472	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC BOTTOM 14POS 1.00MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	122029 pcs	Data sheet	0528521472.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 52852	Pitch	0.039" (1.00mm)
Packaging	Cut Tape (CT)	Other Names	WM11078CT
Operating Temperature	-20°C ~ 80°C	Number of Positions	14
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyphenylene Sulfide (PPS)
Housing Color	-	Height Above Board	0.122" (3.10mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention
FFC, FCB Thickness	0.30mm	Detailed Description	14 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Straight
Actuator Material	-	Actuator Color	-
