0528520472

Affinity Medical Technologies - a Molex company

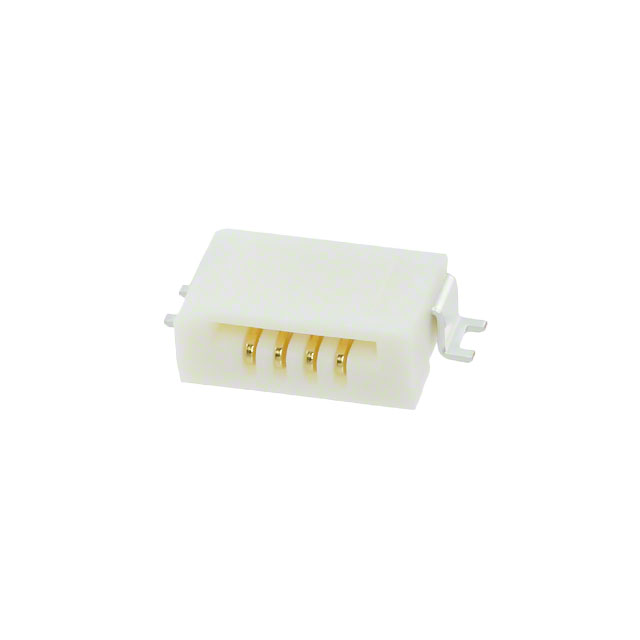

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0528520472
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC BOTTOM 4POS 1.00MM R/A
Datasheets:	0528520472.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	187464 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 187464 pcs

Reference Price (In US Dollars)

1 pcs: $0.202

10 pcs: $0.191

25 pcs: $0.172

50 pcs: $0.153

100 pcs: $0.147

250 pcs: $0.134

500 pcs: $0.127

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.202

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0528520472

Part Number	0528520472	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC BOTTOM 4POS 1.00MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	187464 pcs	Data sheet	0528520472.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 52852	Pitch	0.039" (1.00mm)
Packaging	Cut Tape (CT)	Other Names	WM11071CT
Operating Temperature	-20°C ~ 80°C	Number of Positions	4
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyphenylene Sulfide (PPS)
Housing Color	-	Height Above Board	0.122" (3.10mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention
FFC, FCB Thickness	0.30mm	Detailed Description	4 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Bottom	Cable End Type	Straight
Actuator Material	-	Actuator Color	-
