0528081471

Affinity Medical Technologies - a Molex company

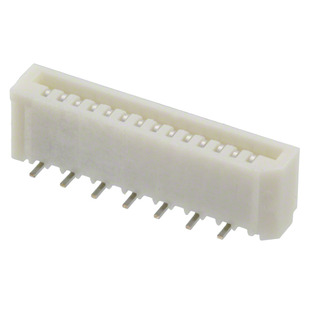

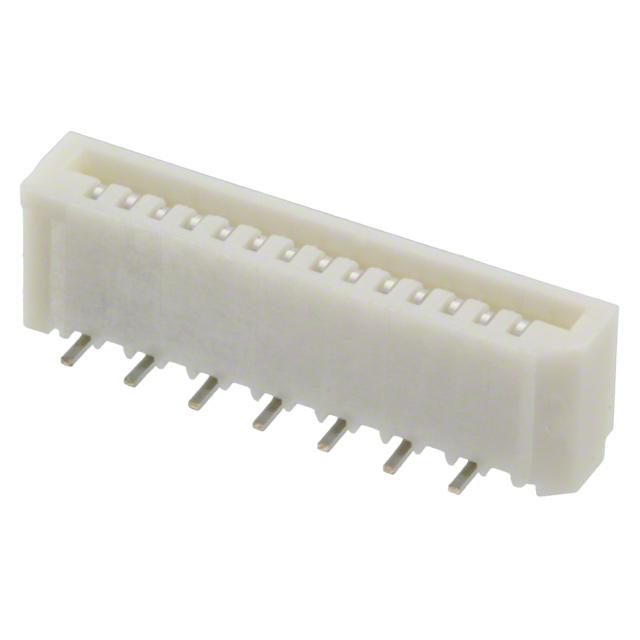

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0528081471
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC FPC VERT 14POS 1MM SMD
Datasheets:	0528081471.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	392844 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 392844 pcs

Reference Price (In US Dollars)

1000 pcs: $0.091

2000 pcs: $0.089

3000 pcs: $0.083

5000 pcs: $0.08

10000 pcs: $0.075

25000 pcs: $0.072

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.091

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0528081471

Part Number	0528081471	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC FPC VERT 14POS 1MM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	392844 pcs	Data sheet	0528081471.pdf
Voltage Rating	125V	Termination	Solder
Series	Easy-On 52808	Pitch	0.039" (1.00mm)
Packaging	Tape & Reel (TR)	Other Names	052808-1471 0528081471-ND 52808-1471 528081471 WM11056TR
Operating Temperature	-20°C ~ 85°C	Number of Positions	14
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	9 Weeks	Locking Feature	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyphenylene Sulfide (PPS)
Housing Color	-	Height Above Board	0.199" (5.05mm)
Flat Flex Type	FFC, FPC	Features	-
FFC, FCB Thickness	0.30mm	Detailed Description	14 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Surface Mount
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Tin Bismuth
Connector/Contact Type	Contacts, Vertical, 1 Sided	Cable End Type	Straight
Actuator Material	-	Actuator Color	-
