0527451497

Affinity Medical Technologies - a Molex company

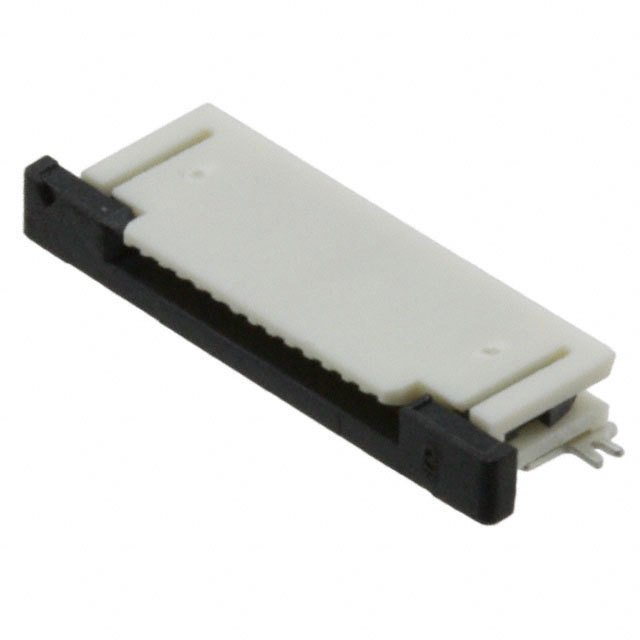

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0527451497
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC TOP 14POS 0.50MM R/A
Datasheets:	0527451497.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	116579 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 116579 pcs

Reference Price (In US Dollars)

1000 pcs: $0.282

2000 pcs: $0.264

3000 pcs: $0.255

5000 pcs: $0.247

10000 pcs: $0.234

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.282

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0527451497

Part Number	0527451497	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC TOP 14POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	116579 pcs	Data sheet	0527451497.pdf
Voltage Rating	50V	Termination	Solder
Series	52745	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	52745-1497 527451497 WM3769TR
Operating Temperature	-20°C ~ 85°C	Number of Positions	14
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	-
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Housing Color	-	Height Above Board	0.079" (2.00mm)
Flat Flex Type	-	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	14 Position Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Top	Cable End Type	Straight
Actuator Material	-	Actuator Color	-
