0525591052

Affinity Medical Technologies - a Molex company

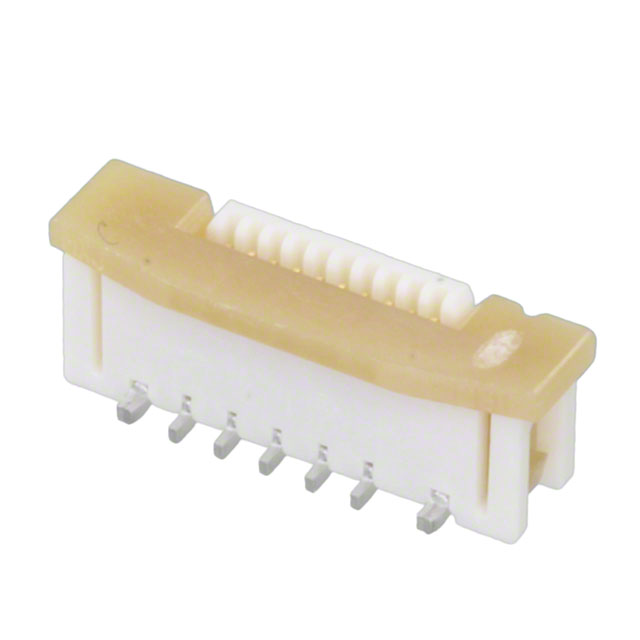

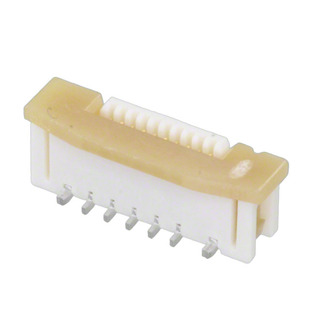

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0525591052
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC VERT 10POS 0.50MM SMD
Datasheets:	0525591052.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	111217 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 111217 pcs

Reference Price (In US Dollars)

1000 pcs: $0.276

2000 pcs: $0.259

3000 pcs: $0.25

5000 pcs: $0.242

10000 pcs: $0.23

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.276

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0525591052

Part Number	0525591052	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC VERT 10POS 0.50MM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	111217 pcs	Data sheet	0525591052.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 52559	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	052559-1052 052559-1052-C 0525591052-C 52559-1052 52559-1052-C 52559-1079 525591052 525591052-C SD-52559-048 WM7983TR
Operating Temperature	-40°C ~ 85°C	Number of Positions	10
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA46), Nylon 4/6
Housing Color	-	Height Above Board	0.154" (3.90mm)
Flat Flex Type	FFC, FPC	Features	Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	10 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.020" (0.50mm) Surface Mount
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector/Contact Type	Contacts, Vertical, 1 Sided	Cable End Type	Straight, Tapered
Actuator Material	Polyphenylene Sulfide (PPS)	Actuator Color	-
