0522710879

Affinity Medical Technologies - a Molex company

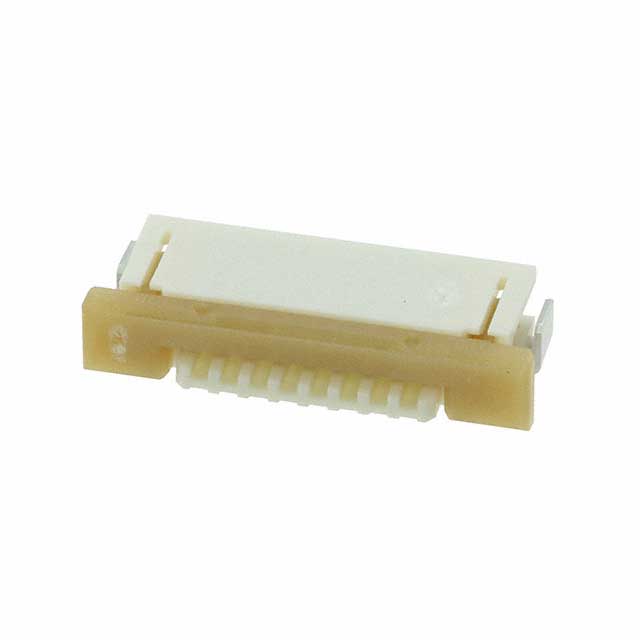

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0522710879
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC BOTTOM 8POS 1.00MM R/A
Datasheets:	0522710879.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	156751 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 156751 pcs

Reference Price (In US Dollars)

1000 pcs: $0.194

2000 pcs: $0.182

3000 pcs: $0.176

5000 pcs: $0.17

10000 pcs: $0.161

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.194

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0522710879

Part Number	0522710879	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC BOTTOM 8POS 1.00MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	156751 pcs	Data sheet	0522710879.pdf
Voltage Rating	50V	Termination	Solder
Series	52271	Pitch	0.039" (1.00mm)
Packaging	Tape & Reel (TR)	Other Names	052271-0879 052271-0879-C 0522710879-C 52271-0819 52271-0879 52271-0879-C 522710879 522710879-C WM7957TR
Operating Temperature	-40°C ~ 85°C	Number of Positions	8
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	30	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA46), Nylon 4/6
Housing Color	-	Height Above Board	0.118" (3.00mm)
Flat Flex Type	FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	8 Position FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Current Rating	0.5A	Contact Material	Phosphor Bronze
Contact Finish Thickness	39.4µin (1.00µm)	Contact Finish	Tin Bismuth
Connector/Contact Type	Contacts, Bottom	Cable End Type	Tapered
Actuator Material	Polyphenylene Sulfide (PPS)	Actuator Color	-
