0522073433

Affinity Medical Technologies - a Molex company

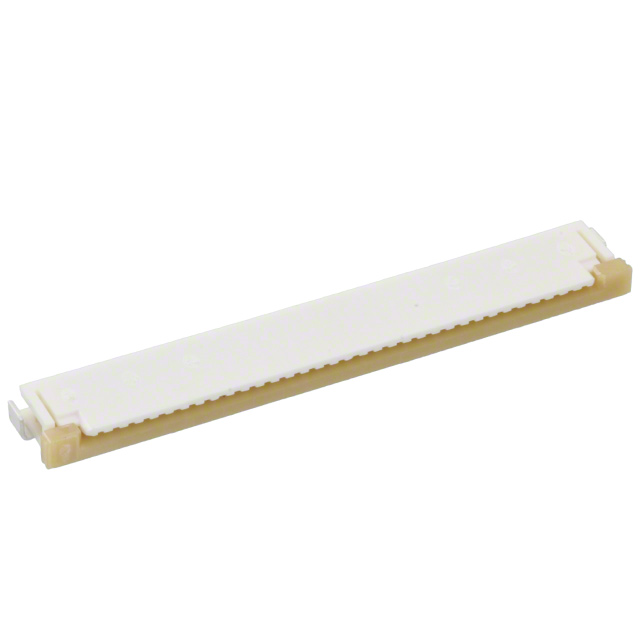

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0522073433
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC FPC TOP 34POS 1MM R/A
Datasheets:	0522073433.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	59845 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 59845 pcs

Reference Price (In US Dollars)

1000 pcs: $0.618

2000 pcs: $0.596

3000 pcs: $0.575

5000 pcs: $0.554

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.618

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0522073433

Part Number	0522073433	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC FPC TOP 34POS 1MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	59845 pcs	Data sheet	0522073433.pdf
Voltage Rating	125V	Termination	Solder
Series	Easy-On 52207	Pitch	0.039" (1.00mm)
Packaging	Tape & Reel (TR)	Other Names	0052207-3433 052207-3433 0522073433-ND 52207-3433 522073433 WM10963TR
Operating Temperature	-40°C ~ 85°C	Number of Positions	34
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	30	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	12 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA), Nylon, Glass Filled
Housing Color	White	Height Above Board	0.106" (2.70mm)
Flat Flex Type	FFC, FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	34 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	39.4µin (1.00µm)	Contact Finish	Tin Bismuth
Connector/Contact Type	Contacts, Top	Cable End Type	Tapered
Actuator Material	Polyphenylene Sulfide (PPS)	Actuator Color	Brown
