0522071185

Affinity Medical Technologies - a Molex company

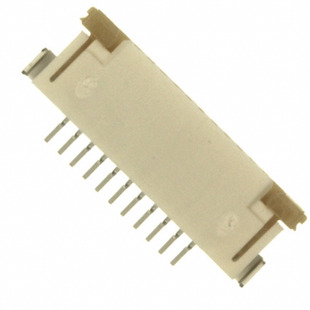

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0522071185
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC FPC TOP 11POS 1MM R/A
Datasheets:	0522071185.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6511 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6511 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0522071185

Part Number	0522071185	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC FPC TOP 11POS 1MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6511 pcs	Data sheet	0522071185.pdf
Voltage Rating	125V	Termination	Solder
Series	Easy-On 52207	Pitch	0.039" (1.00mm)
Packaging	Cut Tape (CT)	Other Names	WM7971CT
Operating Temperature	-30°C ~ 85°C	Number of Positions	11
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	30	Material Flammability Rating	UL94 V-0
Locking Feature	Slide Lock	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polyamide (PA46), Nylon 4/6	Housing Color	-
Height Above Board	0.106" (2.70mm)	Flat Flex Type	FFC, FPC
Features	Solder Retention, Zero Insertion Force (ZIF)	FFC, FCB Thickness	0.30mm
Detailed Description	11 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle	Current Rating	1A
Contact Material	Phosphor Bronze	Contact Finish Thickness	39.4µin (1.00µm)
Contact Finish	Tin Bismuth	Connector/Contact Type	Contacts, Top
Cable End Type	Tapered	Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Color	-
