0522070885

Affinity Medical Technologies - a Molex company

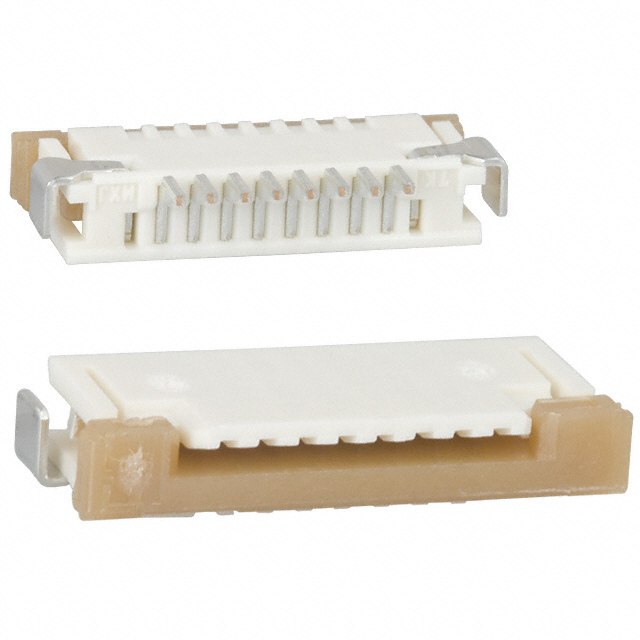

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0522070885
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC FPC TOP 8POS 1.00MM R/A
Datasheets:	0522070885.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5352 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5352 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0522070885

Part Number	0522070885	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC FPC TOP 8POS 1.00MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5352 pcs	Data sheet	0522070885.pdf
Voltage Rating	125V	Termination	Solder
Series	Easy-On 52207	Pitch	0.039" (1.00mm)
Packaging	Tape & Reel (TR)	Other Names	052207-0885 052207-0885-C 0522070885-C 52207-0885 52207-0885-C 522070885 522070885-C WM7677TR
Operating Temperature	-30°C ~ 85°C	Number of Positions	8
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	30	Material Flammability Rating	UL94 V-0
Locking Feature	Slide Lock	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polyamide (PA46), Nylon 4/6	Housing Color	-
Height Above Board	0.106" (2.70mm)	Flat Flex Type	FFC, FPC
Features	Solder Retention, Zero Insertion Force (ZIF)	FFC, FCB Thickness	0.30mm
Detailed Description	8 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle	Current Rating	1A
Contact Material	Phosphor Bronze	Contact Finish Thickness	39.4µin (1.00µm)
Contact Finish	Tin Bismuth	Connector/Contact Type	Contacts, Top
Cable End Type	Tapered	Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Color	-
