0520451645

Affinity Medical Technologies - a Molex company

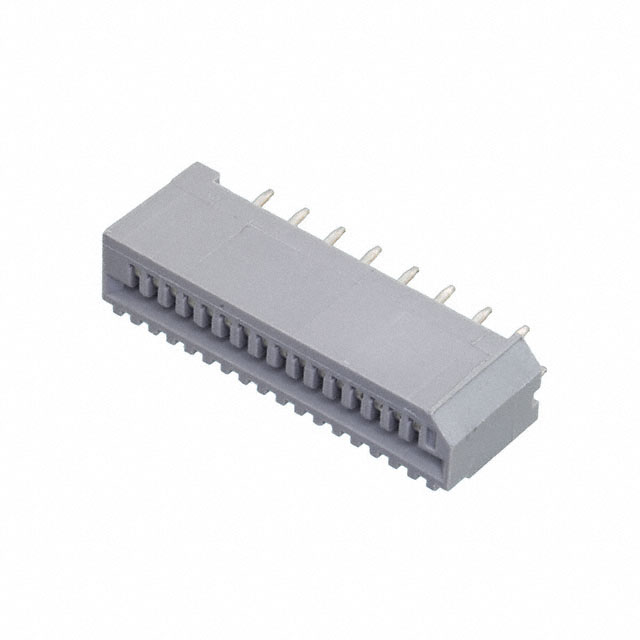

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0520451645
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC VERT 16POS 1.25MM PCB
Datasheets:	0520451645.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	369515 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 369515 pcs

Reference Price (In US Dollars)

9360 pcs: $0.104

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.104

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0520451645

Part Number	0520451645	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC VERT 16POS 1.25MM PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	369515 pcs	Data sheet	0520451645.pdf
Voltage Rating	200V	Termination	Kinked Pin
Series	52045	Pitch	0.049" (1.25mm)
Packaging	Tray	Other Names	052045-1645 52045-1645 520451645 WM3373
Operating Temperature	-40°C ~ 85°C	Number of Positions	16
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	-	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polybutylene Terephthalate (PBT), Polyester
Housing Color	Gray	Height Above Board	0.315" (8.00mm)
Flat Flex Type	FFC, FPC	Features	-
FFC, FCB Thickness	0.30mm	Detailed Description	16 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.049" (1.25mm) Through Hole
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	35.4µin (0.90µm)	Contact Finish	Tin
Connector/Contact Type	Contacts, Vertical, 1 Sided	Cable End Type	Straight
Actuator Material	-	Actuator Color	-
