0520442845

Affinity Medical Technologies - a Molex company

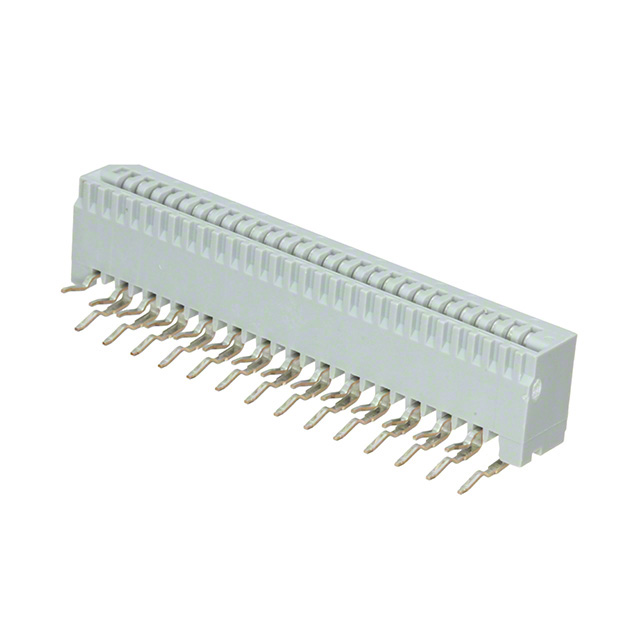

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0520442845
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC TOP 28POS 1.25MM R/A
Datasheets:	0520442845.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	65107 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 65107 pcs

Reference Price (In US Dollars)

1 pcs: $0.477

10 pcs: $0.419

25 pcs: $0.394

50 pcs: $0.378

100 pcs: $0.361

250 pcs: $0.329

500 pcs: $0.296

1600 pcs: $0.246

3200 pcs: $0.238

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.477

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0520442845

Part Number	0520442845	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC TOP 28POS 1.25MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	65107 pcs	Data sheet	0520442845.pdf
Voltage Rating	200V	Termination	Kinked Pin
Series	52044	Pitch	0.049" (1.25mm)
Packaging	Tray	Other Names	052044-2845 0520442845-ND 52044-2845 520442845 WM20304
Operating Temperature	-40°C ~ 85°C	Number of Positions	28
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	-	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	15 Weeks	Locking Feature	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polybutylene Terephthalate (PBT), Polyester
Housing Color	Gray	Height Above Board	0.197" (5.00mm)
Flat Flex Type	FFC, FPC	Features	-
FFC, FCB Thickness	0.30mm	Detailed Description	28 Position FFC, FPC Connector Contacts, Top 0.049" (1.25mm) Through Hole, Right Angle
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	35.4µin (0.90µm)	Contact Finish	Tin
Connector/Contact Type	Contacts, Top	Cable End Type	Straight
Actuator Material	-	Actuator Color	-
