0514412093

Affinity Medical Technologies - a Molex company

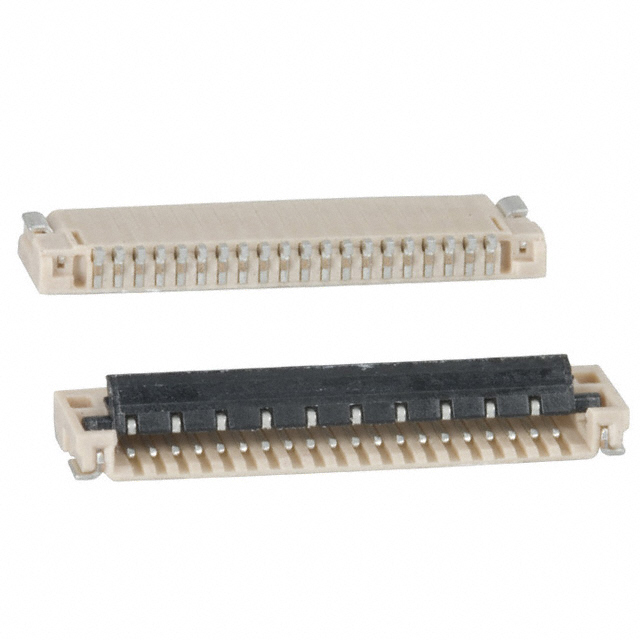

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0514412093
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC BOTTOM 20POS 0.50MM R/A
Datasheets:	0514412093.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	42865 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 42865 pcs

Reference Price (In US Dollars)

1 pcs: $0.802

10 pcs: $0.727

25 pcs: $0.683

50 pcs: $0.653

100 pcs: $0.623

250 pcs: $0.564

500 pcs: $0.519

1000 pcs: $0.445

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.802

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0514412093

Part Number	0514412093	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC BOTTOM 20POS 0.50MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	42865 pcs	Data sheet	0514412093.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 51441	Pitch	0.020" (0.50mm)
Packaging	Cut Tape (CT)	Other Names	WM1559 WM1559-ND WM1559CT
Operating Temperature	-20°C ~ 85°C	Number of Positions	20
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	20	Material Flammability Rating	UL94 V-0
Locking Feature	Flip Lock	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled	Housing Color	Beige
Height Above Board	0.044" (1.12mm)	Flat Flex Type	FFC, FPC
Features	Solder Retention, Zero Insertion Force (ZIF)	FFC, FCB Thickness	0.30mm
Detailed Description	20 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle	Current Rating	0.5A
Contact Material	Phosphor Bronze	Contact Finish Thickness	-
Contact Finish	Tin Bismuth	Connector/Contact Type	Contacts, Bottom
Cable End Type	Straight, Tapered	Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Actuator Color	Black
