05016162575

Affinity Medical Technologies - a Molex company

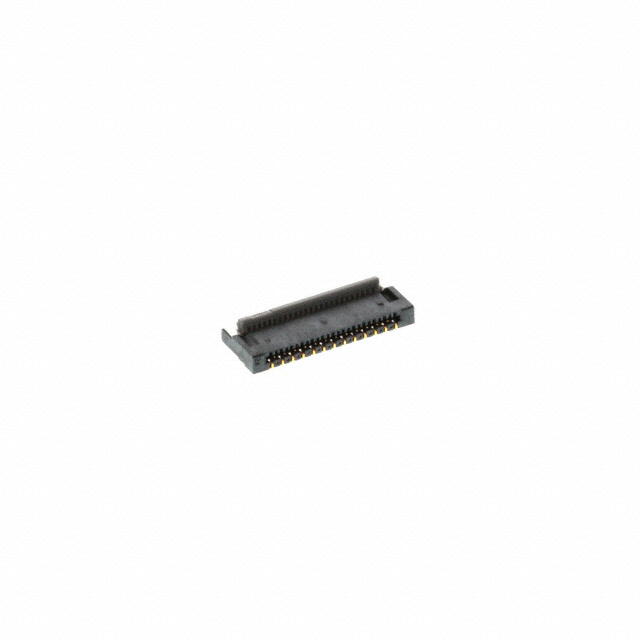

Image may be representation. See specifications for product details.

Product Overview

Part Number:	05016162575
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FPC TOP 25POS 0.30MM R/A
Datasheets:	05016162575.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	59784 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 59784 pcs

Reference Price (In US Dollars)

1 pcs: $0.647

10 pcs: $0.586

25 pcs: $0.55

50 pcs: $0.526

100 pcs: $0.502

250 pcs: $0.454

500 pcs: $0.418

1000 pcs: $0.359

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.647

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 05016162575

Part Number	05016162575	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FPC TOP 25POS 0.30MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	59784 pcs	Data sheet	05016162575.pdf
Voltage Rating	50V	Termination	Solder
Series	Easy-On 501616	Pitch	0.012" (0.30mm)
Packaging	Cut Tape (CT)	Other Names	WM2201 WM2201-ND WM2201CT
Operating Temperature	-40°C ~ 85°C	Number of Positions	25
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Locking Feature	Flip Lock, Backlock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polymer
Housing Color	Black	Height Above Board	0.044" (1.12mm)
Flat Flex Type	FPC	Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.20mm	Detailed Description	25 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle
Current Rating	0.2A	Contact Material	Copper Alloy
Contact Finish Thickness	-	Contact Finish	Gold
Connector/Contact Type	Contacts, Top	Cable End Type	Tapered
Actuator Material	Polymer	Actuator Color	Gray
