05-06-0301

Affinity Medical Technologies - a Molex company

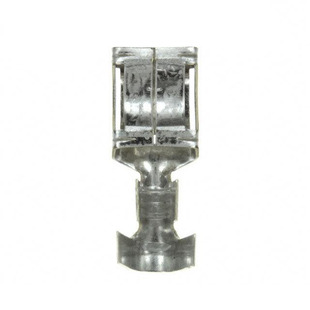

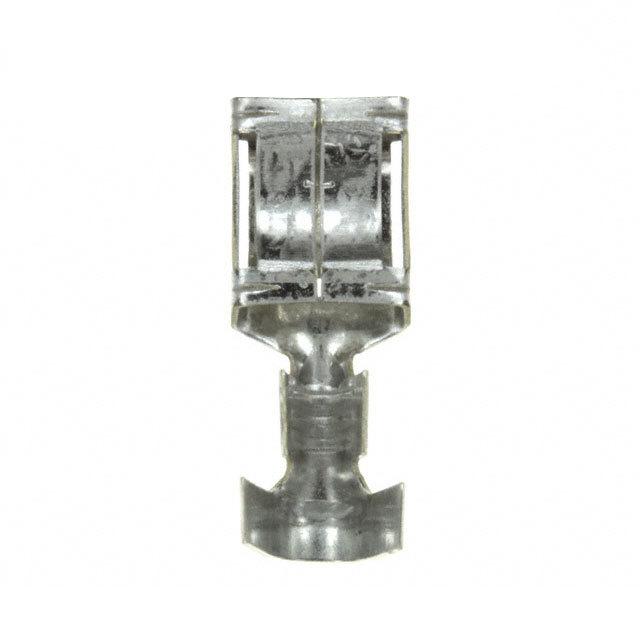

Image may be representation. See specifications for product details.

Product Overview

Part Number:	05-06-0301
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN QC RCPT 14-22AWG 0.187
Datasheets:	05-06-0301.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1497825 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1497825 pcs

Reference Price (In US Dollars)

3000 pcs: $0.026

6000 pcs: $0.025

9000 pcs: $0.024

15000 pcs: $0.022

30000 pcs: $0.02

75000 pcs: $0.019

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.026

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 05-06-0301

Part Number	05-06-0301	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN QC RCPT 14-22AWG 0.187	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1497825 pcs	Data sheet	05-06-0301.pdf
Wire Gauge	14-22 AWG	Termination	Crimp
Terminal Type	Flat Blade	Tab Width	0.187" (4.75mm)
Tab Thickness	0.020" (0.51mm)	Tab Length	0.275" (6.99mm)
Series	2176	Packaging	Tape & Reel (TR)
Other Names	0005-06-0301 0005-06-0301-C 0005060301 0005060301-C 05-06-0301-C 05060301 05060301-C 2176-T 5060301 WM2684TR	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.630" (16.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Diameter	0.031" (0.79mm)	Insulation	Non-Insulated
Gender	Female	Features	-
Detailed Description	0.187" (4.75mm) Quick Connect Female 14-22 AWG Crimp Connector Non-Insulated	Contact Material	Brass
Contact Finish	Tin	Color	-
