0477450100

Affinity Medical Technologies - a Molex company

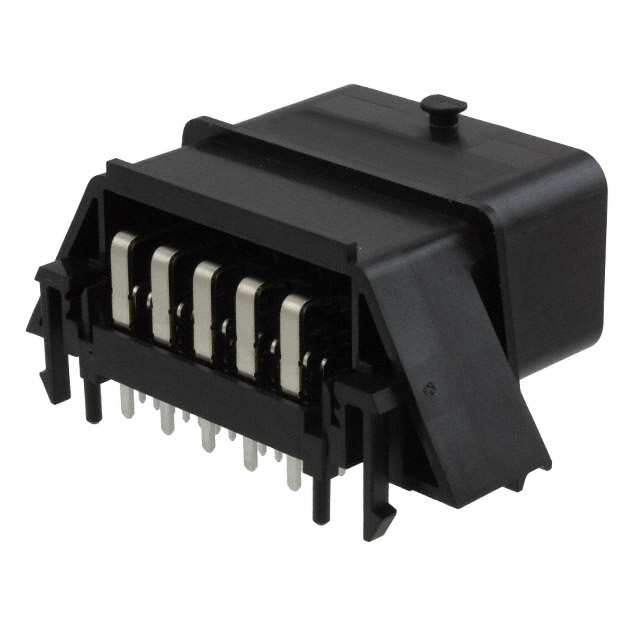

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0477450100
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN CMC HEADER 28POS R/A
Datasheets:	0477450100.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5977 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5977 pcs

Reference Price (In US Dollars)

1 pcs: $5.494

10 pcs: $4.995

100 pcs: $4.245

500 pcs: $3.621

1000 pcs: $3.321

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$5.494

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0477450100

Part Number	0477450100	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN CMC HEADER 28POS R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5977 pcs	Data sheet	0477450100.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	CMC 47745	Row Spacing - Mating	-
Pitch - Mating	-	Packaging	Tray
Overall Contact Length	-	Other Names	47745-0100 477450100 WM9447
Operating Temperature	-	Number of Rows	3
Number of Positions Loaded	All	Number of Positions	28
Mounting Type	Board Edge, Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	1.102" (27.99mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide, Board Lock, Mounting Flange	Fastening Type	Latch Lock
Detailed Description	Connector Header Board Edge, Through Hole, Right Angle 28 position	Current Rating	-
Contact Type	Male Pin	Contact Shape	-
Contact Material	Brass	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	39.4µin (1.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
