0476540001

Affinity Medical Technologies - a Molex company

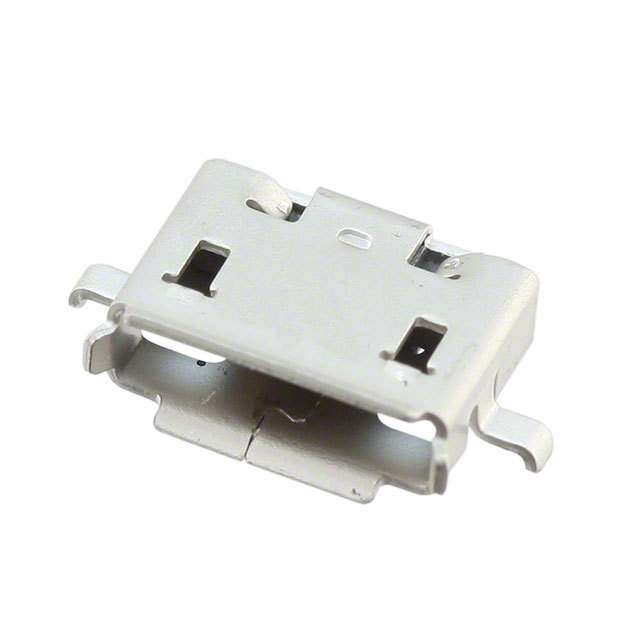

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0476540001
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RCPT MICRO USB AB R/A SMD
Datasheets:	0476540001.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	136538 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 136538 pcs

Reference Price (In US Dollars)

1 pcs: $0.282

10 pcs: $0.249

25 pcs: $0.234

50 pcs: $0.224

100 pcs: $0.215

250 pcs: $0.195

500 pcs: $0.176

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.282

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0476540001

Part Number	0476540001	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RCPT MICRO USB AB R/A SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	136538 pcs	Data sheet	0476540001.pdf
Voltage - Rated	30VAC	Termination	Solder
Specifications	-	Shielding	Shielded
Shell/Shielding Material	Steel, Stainless	Series	47654
Packaging	Original-Reel®	Other Names	WM1397DKR
Operating Temperature	-30°C ~ 85°C	Number of Ports	1
Number of Contacts	5	Mounting Type	Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Mounting Feature	Horizontal, Mid Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10000	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Color	Black	Ingress Protection	-
Gender	Receptacle	Features	Pick and Place
Detailed Description	USB - micro AB Receptacle Connector 5 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle	Current Rating	1A, 1.8A
Contact Finish	Gold	Connector Type	USB - micro AB
