0476420001

Affinity Medical Technologies - a Molex company

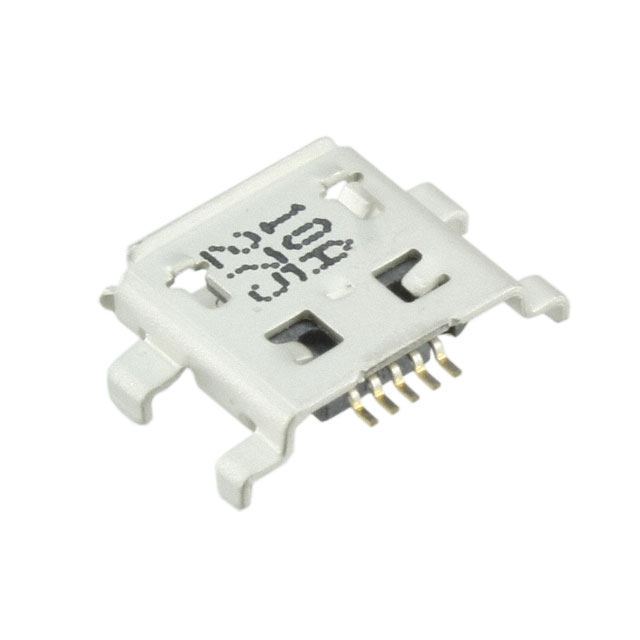

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0476420001
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RCPT MICRO USB TH SMD
Datasheets:	0476420001.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	187150 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 187150 pcs

Reference Price (In US Dollars)

1500 pcs: $0.172

3000 pcs: $0.166

7500 pcs: $0.161

10500 pcs: $0.153

15000 pcs: $0.149

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.172

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0476420001

Part Number	0476420001	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RCPT MICRO USB TH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	187150 pcs	Data sheet	0476420001.pdf
Voltage - Rated	30VAC	Termination	Solder
Specifications	-	Shielding	Shielded
Shell/Shielding Material	Steel, Stainless	Series	47642
Packaging	Tape & Reel (TR)	Other Names	047642-0001 47642-0001 476420001 WM1398TR
Operating Temperature	-20°C ~ 85°C	Number of Ports	1
Number of Contacts	5	Mounting Type	Board Edge, Cutout; Surface Mount, Right Angle
Mounting Feature	Horizontal, Mid Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	10000	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	19 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Color	Black	Ingress Protection	-
Gender	Receptacle	Features	Pick and Place, Solder Retention
Detailed Description	USB - micro B Receptacle Connector 5 Position Board Edge, Cutout; Surface Mount, Right Angle	Current Rating	1A, 1.8A
Contact Finish	Gold	Connector Type	USB - micro B
