0470533000

Affinity Medical Technologies - a Molex company

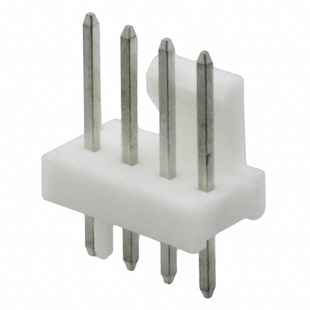

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0470533000
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	4 PIN HEADER WITH FRICTION LOCK
Datasheets:	1.0470533000.pdf 2.0470533000.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	252779 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 252779 pcs

Reference Price (In US Dollars)

1 pcs: $0.155

10 pcs: $0.147

100 pcs: $0.113

500 pcs: $0.098

1000 pcs: $0.081

5000 pcs: $0.071

10000 pcs: $0.066

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.155

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0470533000

Part Number	0470533000	Manufacturer	Affinity Medical Technologies - a Molex company
Description	4 PIN HEADER WITH FRICTION LOCK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	252779 pcs	Data sheet	1.0470533000.pdf 2.0470533000.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	KK 47053	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.545" (13.84mm)	Other Names	047053-3000 0470533000-ND 47053-3000 470533000 WM9797
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.295" (7.50mm)
Insulation Color	Ivory	Ingress Protection	-
Features	Board Guide	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 4 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.157" (4.00mm)
Contact Length - Mating	0.289" (7.34mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Medical, Telecommunications
