0466220401

Affinity Medical Technologies - a Molex company

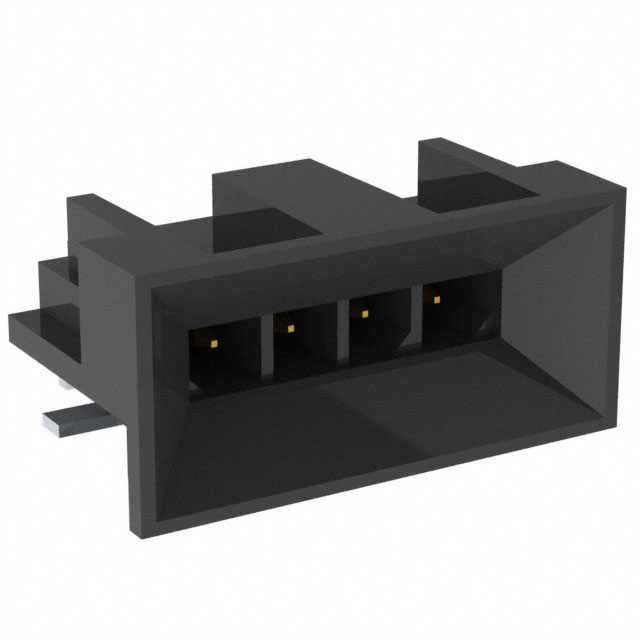

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0466220401
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MICROFIT BMI SR RA SMT NAIL 15AU
Datasheets:	1.0466220401.pdf 2.0466220401.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	60619 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 60619 pcs

Reference Price (In US Dollars)

230 pcs: $0.555

460 pcs: $0.502

690 pcs: $0.462

1150 pcs: $0.396

1610 pcs: $0.383

5750 pcs: $0.351

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.555

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0466220401

Part Number	0466220401	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MICROFIT BMI SR RA SMT NAIL 15AU	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	60619 pcs	Data sheet	1.0466220401.pdf 2.0466220401.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Micro-Fit 3.0 BMI 46622	Row Spacing - Mating	-
Pitch - Mating	0.118" (3.00mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	046622-0401 46622-0401 466220401 WM16966TR
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.350" (8.89mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount, Right Angle 4 position 0.118" (3.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass Alloy	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Medical, Telecommunications
