0460111401

Affinity Medical Technologies - a Molex company

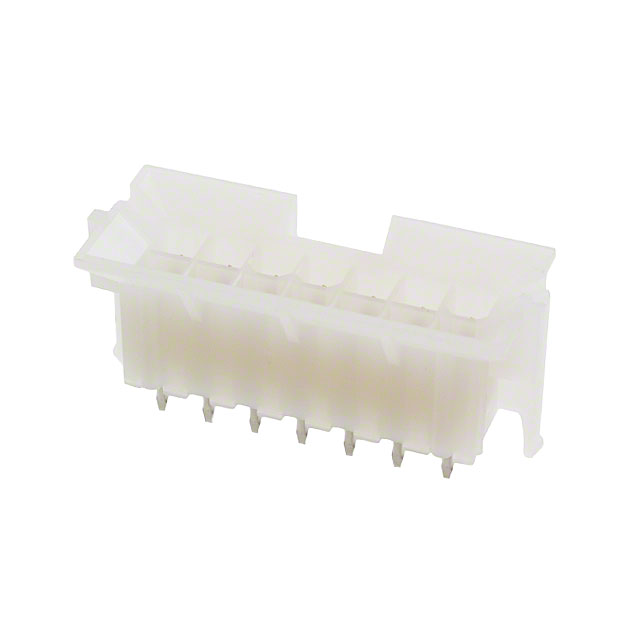

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0460111401
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN VERT BMI HDR ASY GOLD HCS
Datasheets:	1.0460111401.pdf 2.0460111401.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	25627 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 25627 pcs

Reference Price (In US Dollars)

1 pcs: $1.492

10 pcs: $1.432

320 pcs: $1.044

640 pcs: $1.014

1280 pcs: $0.865

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.492

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0460111401

Part Number	0460111401	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN VERT BMI HDR ASY GOLD HCS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25627 pcs	Data sheet	1.0460111401.pdf 2.0460111401.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Plus HCS 46011	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Tray
Overall Contact Length	-	Other Names	046011-1401 46011-1401 460111401 WM5399
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.555" (14.10mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 14 position 0.165" (4.20mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
