0457320001

Affinity Medical Technologies - a Molex company

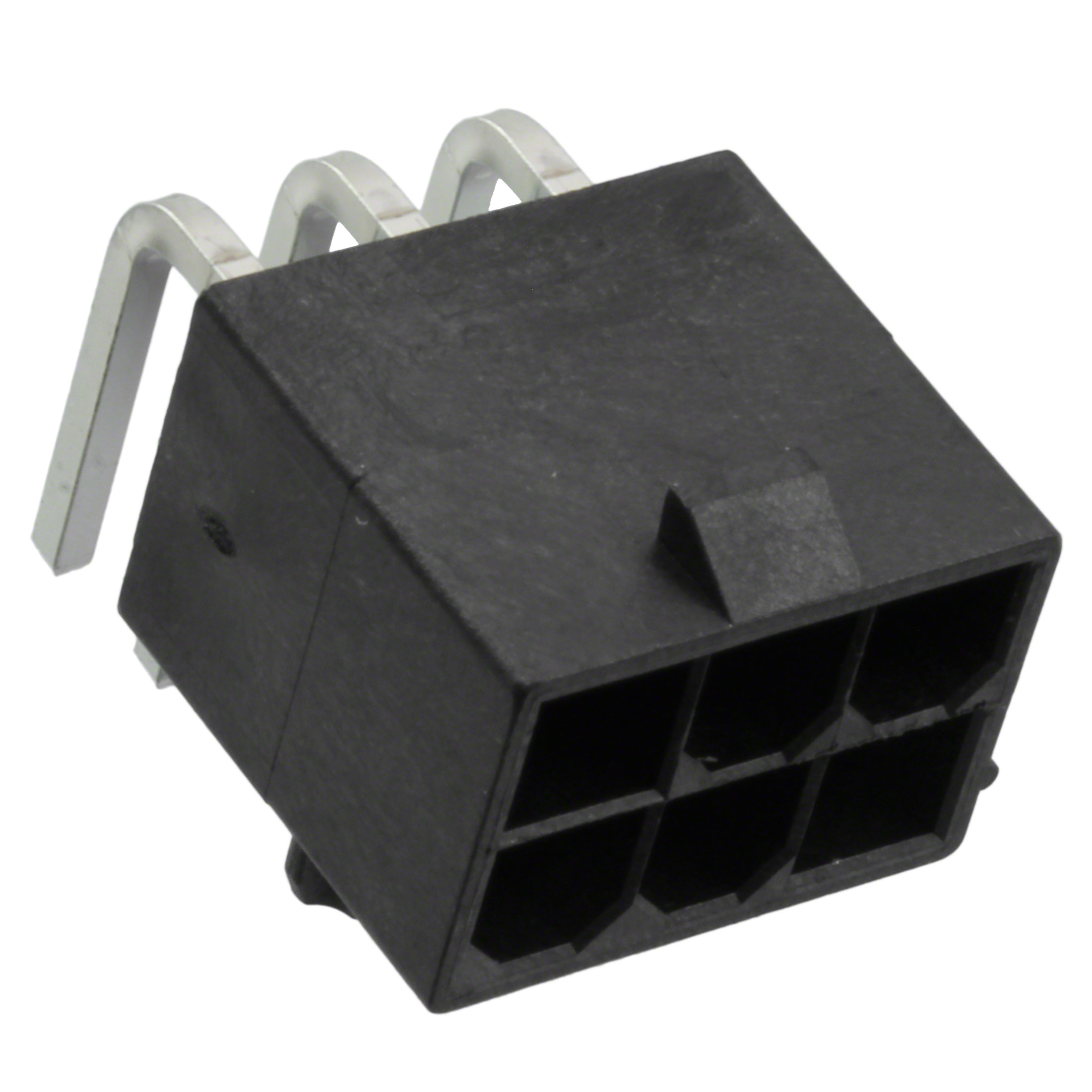

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0457320001
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MF JR RA HDR ASSY 6CKT SPL POLZ
Datasheets:	0457320001.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	58309 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 58309 pcs

Reference Price (In US Dollars)

1 pcs: $0.538

10 pcs: $0.489

300 pcs: $0.379

600 pcs: $0.349

1200 pcs: $0.299

5100 pcs: $0.265

10200 pcs: $0.259

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.538

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0457320001

Part Number	0457320001	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MF JR RA HDR ASSY 6CKT SPL POLZ	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	58309 pcs	Data sheet	0457320001.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Jr 45732	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0457-32-0001 045732-0001 0457320001-ND 45732-0001 457320001 WM10850
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.378" (9.60mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 6 position 0.165" (4.20mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.142" (3.60mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Telecommunications
