0449140601

Affinity Medical Technologies - a Molex company

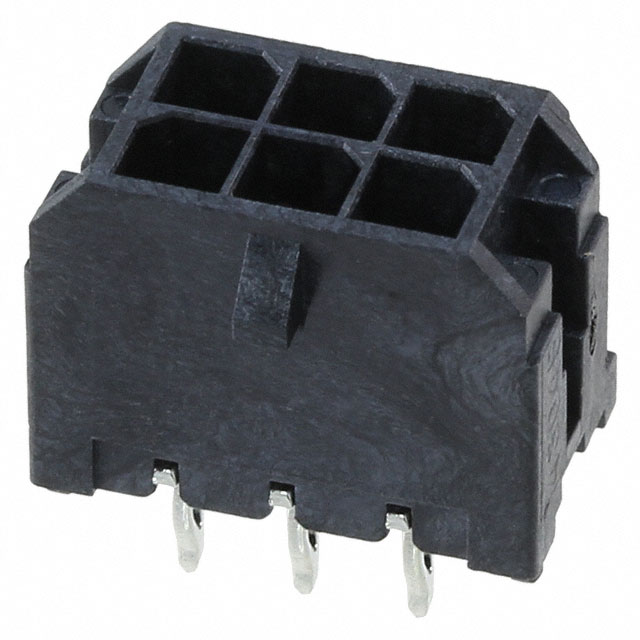

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0449140601
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MICRO FIT 3.0 HDR VERT CPI 6CKT
Datasheets:	1.0449140601.pdf 2.0449140601.pdf 3.0449140601.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	40345 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 40345 pcs

Reference Price (In US Dollars)

1 pcs: $0.759

10 pcs: $0.688

100 pcs: $0.59

500 pcs: $0.492

1728 pcs: $0.407

5184 pcs: $0.374

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.759

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0449140601

Part Number	0449140601	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MICRO FIT 3.0 HDR VERT CPI 6CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	40345 pcs	Data sheet	1.0449140601.pdf 2.0449140601.pdf 3.0449140601.pdf
Voltage Rating	-	Termination	Press-Fit, Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Micro-Fit 3.0 CPI 44914	Row Spacing - Mating	0.118" (3.00mm)
Pitch - Mating	0.118" (3.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0449-14-0601 044914-0601 0449140601-ND 44914-0601 449140601 WM14606
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.390" (9.91mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 6 position 0.118" (3.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Modified Tin/Brass Alloy	Contact Length - Post	0.125" (3.18mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	200.0µin (5.08µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Medical, Military, Telecommunications
