0448120023

Affinity Medical Technologies - a Molex company

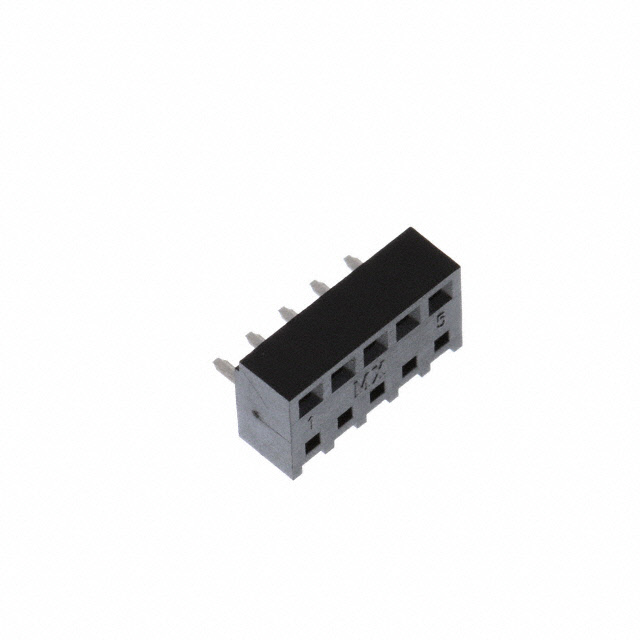

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0448120023
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECPT 5POS .100" 15GOLD PCB
Datasheets:	0448120023.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29848 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 29848 pcs

Reference Price (In US Dollars)

1 pcs: $1.015

10 pcs: $0.976

100 pcs: $0.813

500 pcs: $0.691

1840 pcs: $0.569

5520 pcs: $0.529

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.015

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0448120023

Part Number	0448120023	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECPT 5POS .100" 15GOLD PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29848 pcs	Data sheet	0448120023.pdf
Voltage Rating	250VAC, 176VDC	Termination	Solder
Style	Board to Board	Series	KK 44812
Row Spacing - Mating	-	Pitch - Mating	0.100" (2.54mm)
Packaging	Tray	Other Names	044812-0023 044812-0023-E 0448120023-E 44812-0023 44812-0023-E 44812-0023-TR230 448120023 448120023-E WM18604
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Insulation Height	0.177" (4.50mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	5 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold	Current Rating	-
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Brass Alloy	Contact Length - Post	0.136" (3.46mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Receptacle, Bottom or Top Entry	Applications	Automotive, General Purpose, Medical, Telecommunications
