0448120003

Affinity Medical Technologies - a Molex company

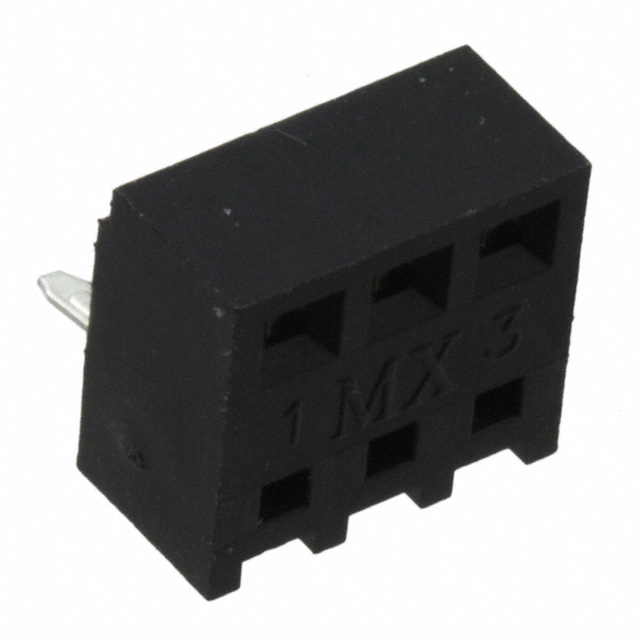

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0448120003
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN RECEPT 3POS .100" TIN PCB
Datasheets:	0448120003.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	57372 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 57372 pcs

Reference Price (In US Dollars)

1 pcs: $0.69

10 pcs: $0.625

100 pcs: $0.536

500 pcs: $0.446

2880 pcs: $0.357

5760 pcs: $0.339

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.69

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0448120003

Part Number	0448120003	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN RECEPT 3POS .100" TIN PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	57372 pcs	Data sheet	0448120003.pdf
Voltage Rating	250VAC, 176VDC	Termination	Solder
Style	Board to Board	Series	KK 44812
Row Spacing - Mating	-	Pitch - Mating	0.100" (2.54mm)
Packaging	Tray	Other Names	044812-0003 044812-0003-E 0448120003-E 44812-0003 44812-0003-E 44812-0003-TR370 448120003 448120003-E WM18591
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Insulation Height	0.177" (4.50mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	3 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Tin	Current Rating	-
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Brass Alloy	Contact Length - Post	0.136" (3.46mm)
Contact Finish Thickness - Post	200.0µin (5.08µm)	Contact Finish Thickness - Mating	200.0µin (5.08µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Receptacle, Bottom or Top Entry	Applications	Automotive, General Purpose, Medical, Telecommunications
