0438790056

Affinity Medical Technologies - a Molex company

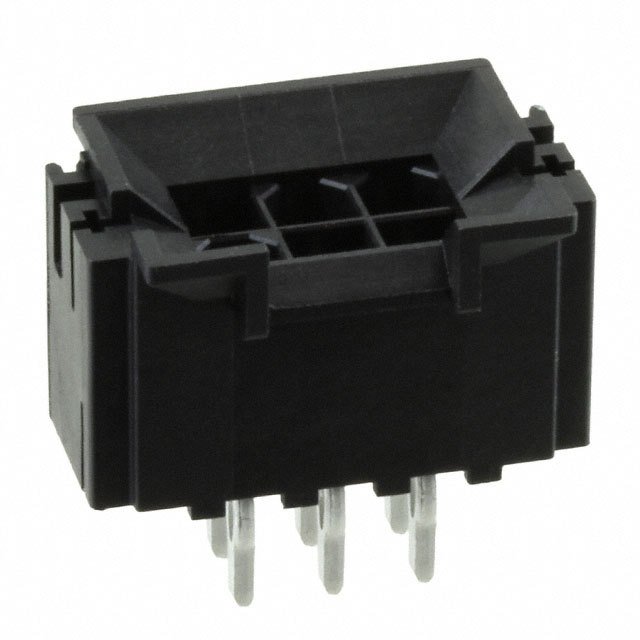

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0438790056
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MINI-FIT CPI HDR FOR .094PCB
Datasheets:	1.0438790056.pdf 2.0438790056.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14049 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14049 pcs

Reference Price (In US Dollars)

1 pcs: $2.771

10 pcs: $2.654

100 pcs: $2.192

560 pcs: $1.846

1120 pcs: $1.615

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.771

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0438790056

Part Number	0438790056	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MINI-FIT CPI HDR FOR .094PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14049 pcs	Data sheet	1.0438790056.pdf 2.0438790056.pdf
Voltage Rating	-	Termination	Press-Fit, Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit BMI/CPI 43879	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0438-79-0056 043879-0056 0438790056-ND 43879-0056 438790056 WM14591
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Insulation Height	0.587" (14.91mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 6 position 0.165" (4.20mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.246" (6.25mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose, Industrial, Medical, Telecommunications
