0438100002

Affinity Medical Technologies - a Molex company

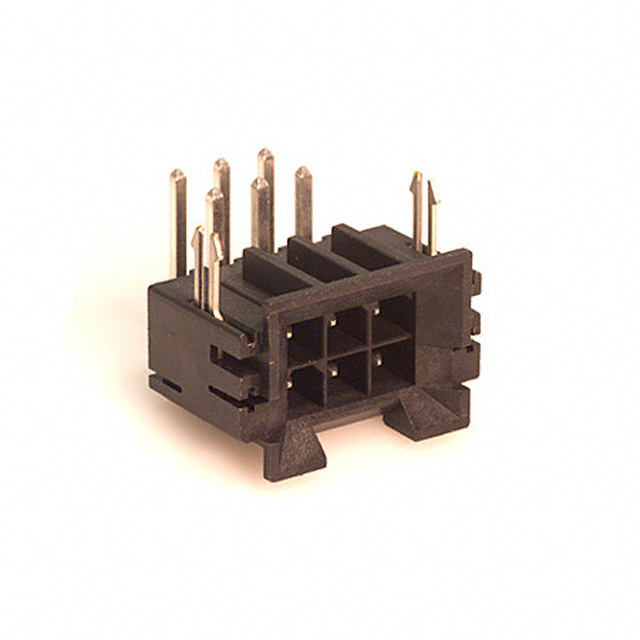

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0438100002
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 6POS R/A W/CLIP TIN
Datasheets:	1.0438100002.pdf 2.0438100002.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	28244 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 28244 pcs

Reference Price (In US Dollars)

1 pcs: $1.192

10 pcs: $1.145

312 pcs: $0.835

624 pcs: $0.811

1248 pcs: $0.692

5304 pcs: $0.62

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.192

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0438100002

Part Number	0438100002	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 6POS R/A W/CLIP TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28244 pcs	Data sheet	1.0438100002.pdf 2.0438100002.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit BMI SMC 43810	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Tray
Overall Contact Length	-	Other Names	043810-0002 043810-0002-P 0438100002-P 438-10-0002-P 43810-0002 43810-0002-P 438100002 438100002-P WM18458
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled	Insulation Height	0.591" (15.00mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 6 position 0.165" (4.20mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.123" (3.12mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Medical, Telecommunications
