0436500504

Affinity Medical Technologies - a Molex company

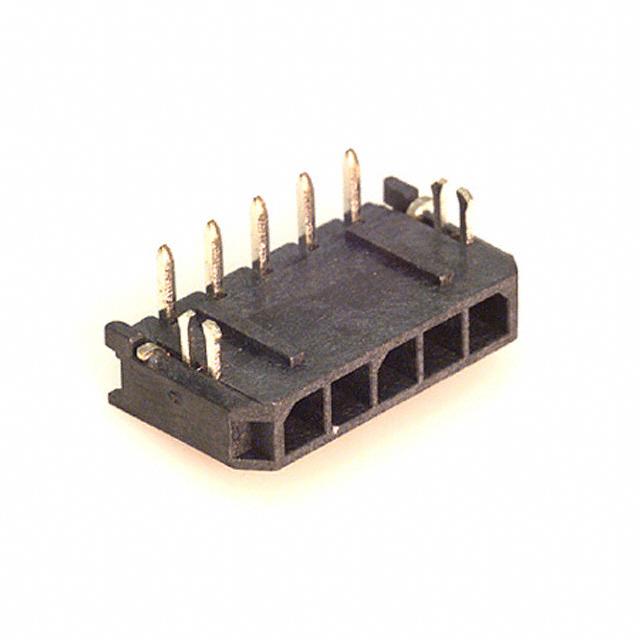

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0436500504
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 5POS R/A W/CLIP GOLD
Datasheets:	1.0436500504.pdf 2.0436500504.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	44259 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 44259 pcs

Reference Price (In US Dollars)

1 pcs: $0.69

10 pcs: $0.625

100 pcs: $0.536

500 pcs: $0.446

2023 pcs: $0.37

6069 pcs: $0.339

10115 pcs: $0.332

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.69

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0436500504

Part Number	0436500504	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 5POS R/A W/CLIP GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	44259 pcs	Data sheet	1.0436500504.pdf 2.0436500504.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Micro-Fit 3.0 43650	Row Spacing - Mating	-
Pitch - Mating	0.118" (3.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	043650-0504 043650-0504-P 0436500504-P 436-50-0504-P 43650-0504 43650-0504-P 436500504 436500504-P WM1878
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	17 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.172" (4.37mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 5 position 0.118" (3.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.125" (3.18mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose, Medical, Military, Telecommunications
