0436500427

Affinity Medical Technologies - a Molex company

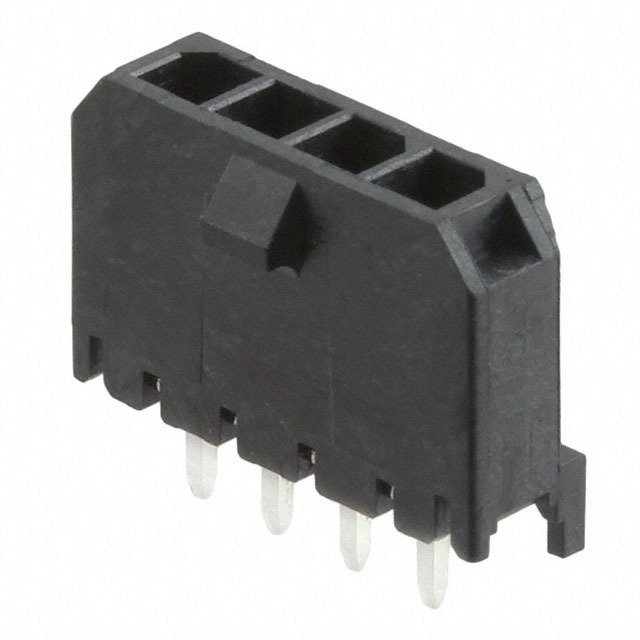

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0436500427
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MICROFIT 3.0 SR VERT TH PEG TIN
Datasheets:	1.0436500427.pdf 2.0436500427.pdf 3.0436500427.pdf 4.0436500427.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	81585 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 81585 pcs

Reference Price (In US Dollars)

1 pcs: $0.397

10 pcs: $0.348

100 pcs: $0.30

500 pcs: $0.246

2040 pcs: $0.205

6120 pcs: $0.191

10200 pcs: $0.182

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.397

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0436500427

Part Number	0436500427	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MICROFIT 3.0 SR VERT TH PEG TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	81585 pcs	Data sheet	1.0436500427.pdf 2.0436500427.pdf 3.0436500427.pdf 4.0436500427.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Micro-Fit 3.0 43650	Row Spacing - Mating	-
Pitch - Mating	0.118" (3.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0436-50-0427 043650-0427 0436500427-ND 43650-0427 436500427 WM10663
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	17.56mm
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.390" (9.91mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 4 position 0.118" (3.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.125" (3.18mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Medical, Military, Telecommunications
