0436500200

Affinity Medical Technologies - a Molex company

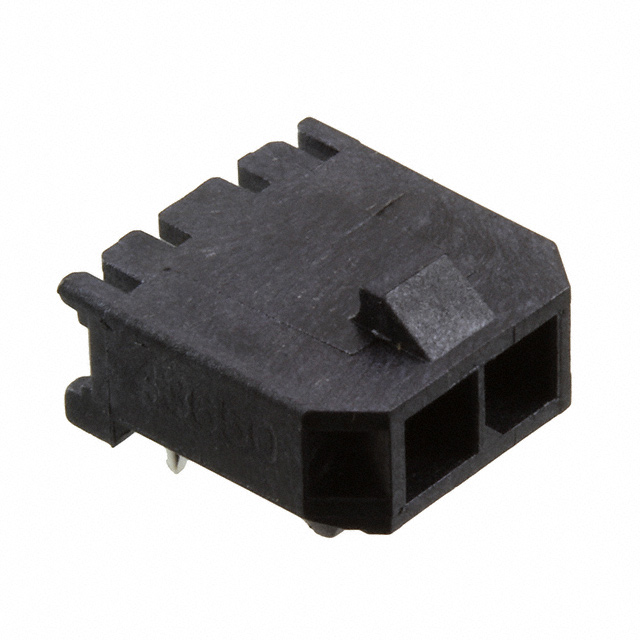

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0436500200
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 2POS 3MM RT ANG TIN
Datasheets:	1.0436500200.pdf 2.0436500200.pdf 3.0436500200.pdf 4.0436500200.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	99095 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 99095 pcs

Reference Price (In US Dollars)

1 pcs: $0.329

10 pcs: $0.289

100 pcs: $0.25

500 pcs: $0.204

3927 pcs: $0.164

7854 pcs: $0.159

11781 pcs: $0.151

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.329

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0436500200

Part Number	0436500200	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 2POS 3MM RT ANG TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	99095 pcs	Data sheet	1.0436500200.pdf 2.0436500200.pdf 3.0436500200.pdf 4.0436500200.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Micro-Fit 3.0 43650	Row Spacing - Mating	-
Pitch - Mating	0.118" (3.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	043650-0200 043650-0200-E 0436500200-E 436-50-0200-P 43650-0200 43650-0200-E 43650-0200-TR231 43650-0200-TR238 436500200 436500200-E WM1860
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.172" (4.37mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 2 position 0.118" (3.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.125" (3.18mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	60.0µin (1.52µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Medical, Military, Telecommunications
