0432550145

Affinity Medical Technologies - a Molex company

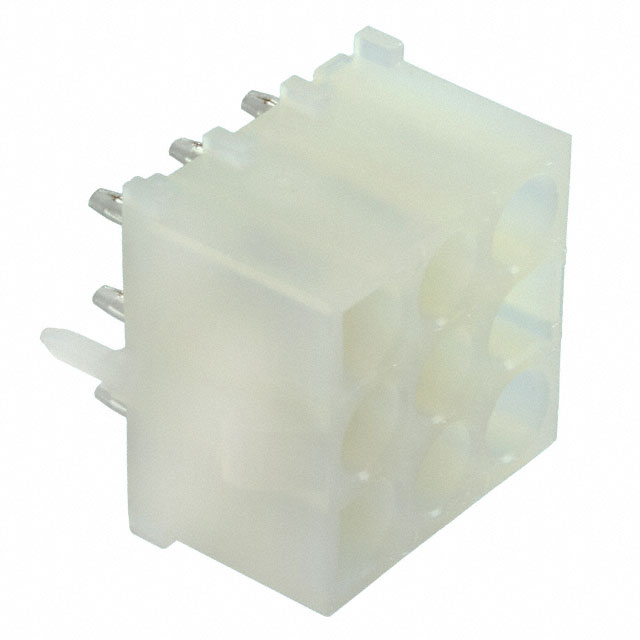

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0432550145
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	0.084 SERIES MLX HEADER 9CKT
Datasheets:	0432550145.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	62916 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 62916 pcs

Reference Price (In US Dollars)

1 pcs: $0.509

10 pcs: $0.463

100 pcs: $0.397

520 pcs: $0.331

1040 pcs: $0.283

5200 pcs: $0.251

10400 pcs: $0.246

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.509

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0432550145

Part Number	0432550145	Manufacturer	Affinity Medical Technologies - a Molex company
Description	0.084 SERIES MLX HEADER 9CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	62916 pcs	Data sheet	0432550145.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MLX 43255	Row Spacing - Mating	0.250" (6.35mm)
Pitch - Mating	0.250" (6.35mm)	Packaging	Tray
Overall Contact Length	-	Other Names	043255-0145 0432550145-ND 43255-0145 432550145 WM14582
Operating Temperature	-	Number of Rows	3
Number of Positions Loaded	All	Number of Positions	9
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.550" (13.97mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 9 position 0.250" (6.35mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	-	Contact Length - Post	0.169" (4.30mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	137.8µin (3.50µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial
