0430452025

Affinity Medical Technologies - a Molex company

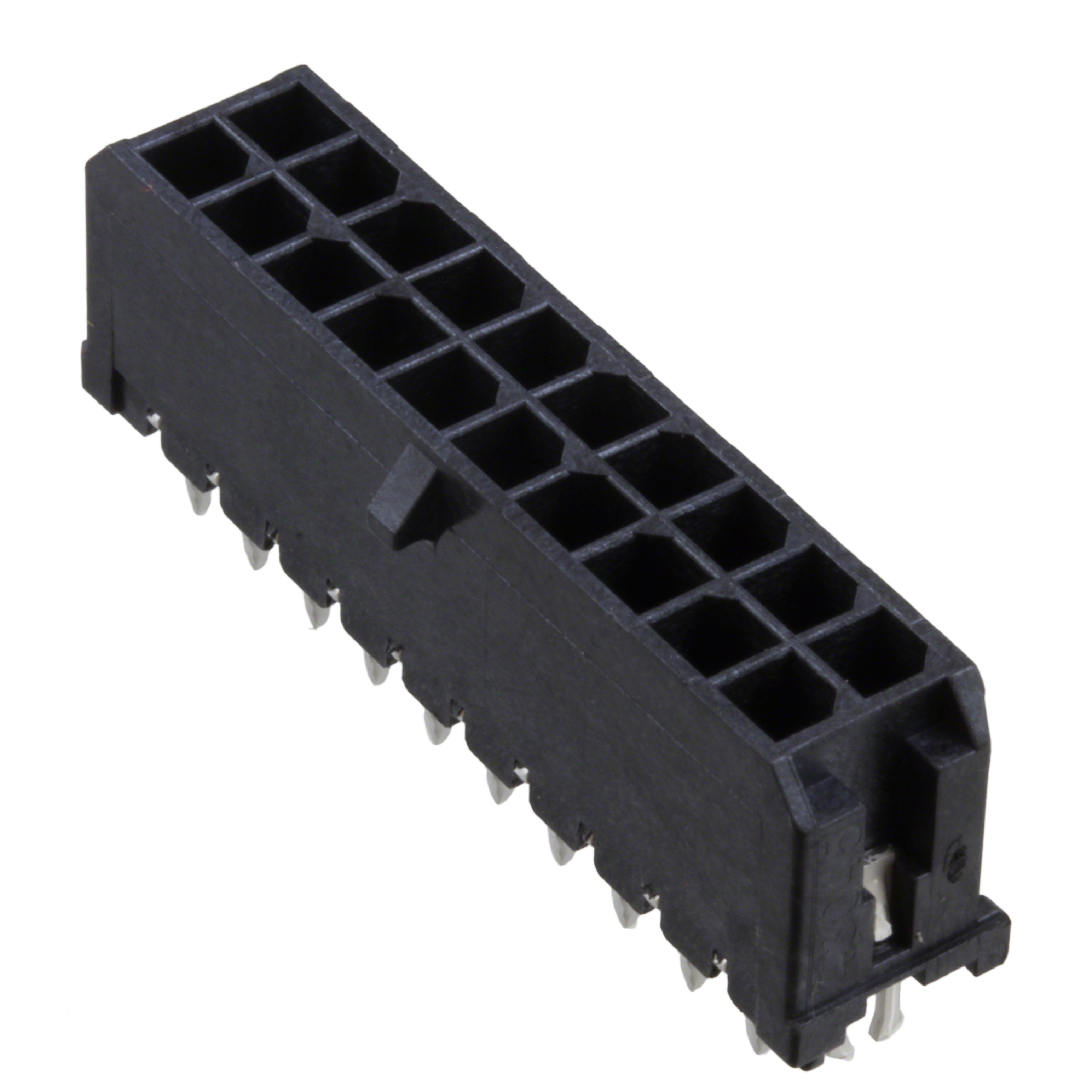

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0430452025
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MICROFIT 3.0 VERT PTH/CLIP DR
Datasheets:	1.0430452025.pdf 2.0430452025.pdf 3.0430452025.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21572 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 21572 pcs

Reference Price (In US Dollars)

1 pcs: $1.73

10 pcs: $1.662

25 pcs: $1.524

50 pcs: $1.454

100 pcs: $1.385

250 pcs: $1.212

648 pcs: $1.177

1296 pcs: $1.004

2592 pcs: $0.935

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.73

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0430452025

Part Number	0430452025	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MICROFIT 3.0 VERT PTH/CLIP DR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21572 pcs	Data sheet	1.0430452025.pdf 2.0430452025.pdf 3.0430452025.pdf
Voltage Rating	-	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Micro-Fit 3.0 43045	Row Spacing - Mating	0.118" (3.00mm)
Pitch - Mating	0.118" (3.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0430-45-2025 043045-2025 0430452025-ND 43045-2025 430452025 WM10735
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.390" (9.91mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide, Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 20 position 0.118" (3.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.125" (3.18mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose, Medical, Military, Telecommunications
