0430452009

Affinity Medical Technologies - a Molex company

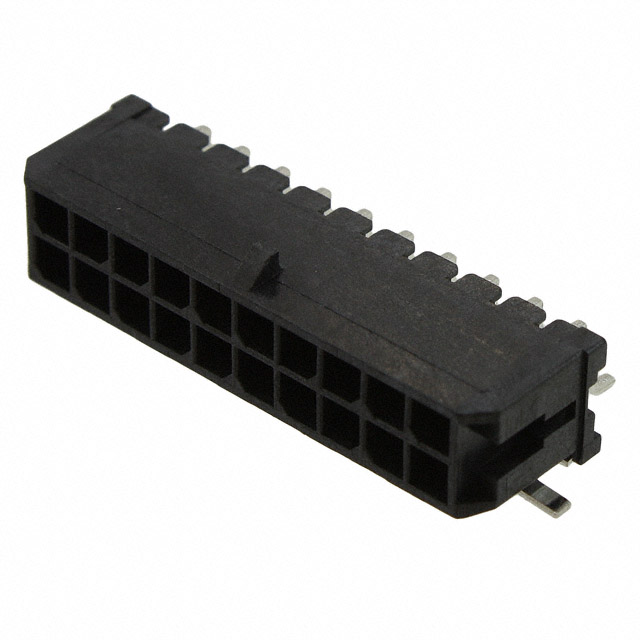

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0430452009
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 20POS R/A TIN SMD
Datasheets:	1.0430452009.pdf 2.0430452009.pdf 3.0430452009.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18533 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 18533 pcs

Reference Price (In US Dollars)

200 pcs: $1.788

400 pcs: $1.564

600 pcs: $1.52

1000 pcs: $1.296

2000 pcs: $1.252

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.788

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0430452009

Part Number	0430452009	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 20POS R/A TIN SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18533 pcs	Data sheet	1.0430452009.pdf 2.0430452009.pdf 3.0430452009.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Micro-Fit 3.0 43045	Row Spacing - Mating	0.118" (3.00mm)
Pitch - Mating	0.118" (3.00mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	043045-2009 43045-2009 430452009 WM7075TR
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.290" (7.37mm)
Insulation Color	Black	Ingress Protection	-
Features	Solder Retention	Fastening Type	Locking Ramp
Detailed Description	Connector Header Surface Mount, Right Angle 20 position 0.118" (3.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	60.0µin (1.52µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Medical, Military, Telecommunications
