0430451622

Affinity Medical Technologies - a Molex company

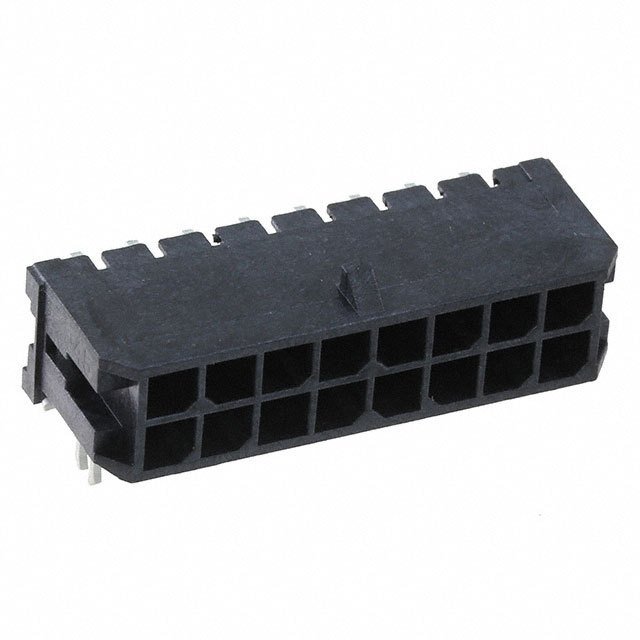

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0430451622
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MICROFIT 3.0 RA PTH W/CLIP 15AU
Datasheets:	1.0430451622.pdf 2.0430451622.pdf 3.0430451622.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19935 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 19935 pcs

Reference Price (In US Dollars)

1 pcs: $1.763

10 pcs: $1.693

25 pcs: $1.552

50 pcs: $1.482

100 pcs: $1.411

250 pcs: $1.235

792 pcs: $1.094

1584 pcs: $0.988

3168 pcs: $0.953

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.763

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0430451622

Part Number	0430451622	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MICROFIT 3.0 RA PTH W/CLIP 15AU	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19935 pcs	Data sheet	1.0430451622.pdf 2.0430451622.pdf 3.0430451622.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Micro-Fit 3.0 43045	Row Spacing - Mating	0.118" (3.00mm)
Pitch - Mating	0.118" (3.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0430-45-1622 043045-1622 0430451622-ND 43045-1622 430451622 WM14574
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.290" (7.37mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 16 position 0.118" (3.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.125" (3.18mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose, Medical, Military, Telecommunications
