0428204214

Affinity Medical Technologies - a Molex company

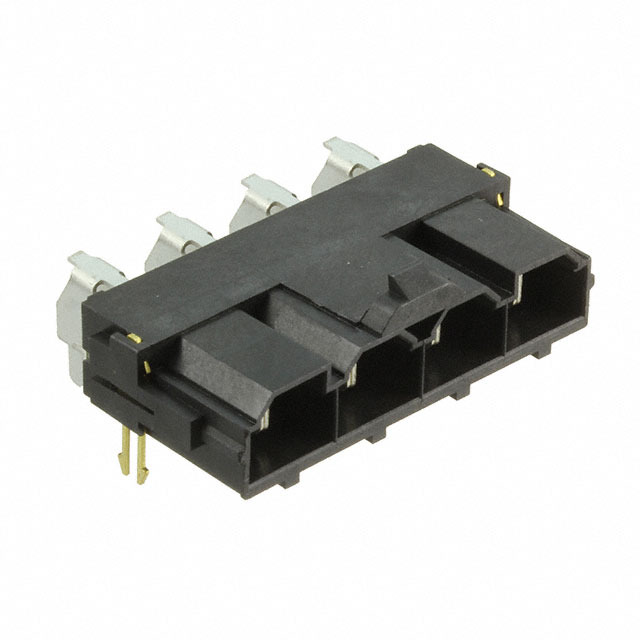

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0428204214
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MF SR RA HDR ASSY 062 4CKT
Datasheets:	1.0428204214.pdf 2.0428204214.pdf 3.0428204214.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10048 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10048 pcs

Reference Price (In US Dollars)

1 pcs: $2.987

10 pcs: $2.862

240 pcs: $2.364

720 pcs: $1.991

1200 pcs: $1.742

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.987

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0428204214

Part Number	0428204214	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MF SR RA HDR ASSY 062 4CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10048 pcs	Data sheet	1.0428204214.pdf 2.0428204214.pdf 3.0428204214.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Sr 42820	Row Spacing - Mating	-
Pitch - Mating	0.394" (10.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	0428204214-ND 428204214 WM11912
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled	Insulation Height	0.421" (10.70mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 4 position 0.394" (10.00mm)	Current Rating	-
Contact Type	Male Blade	Contact Shape	Rectangular
Contact Material	Copper Zirconium Alloy	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Silver	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
