0422271004

Affinity Medical Technologies - a Molex company

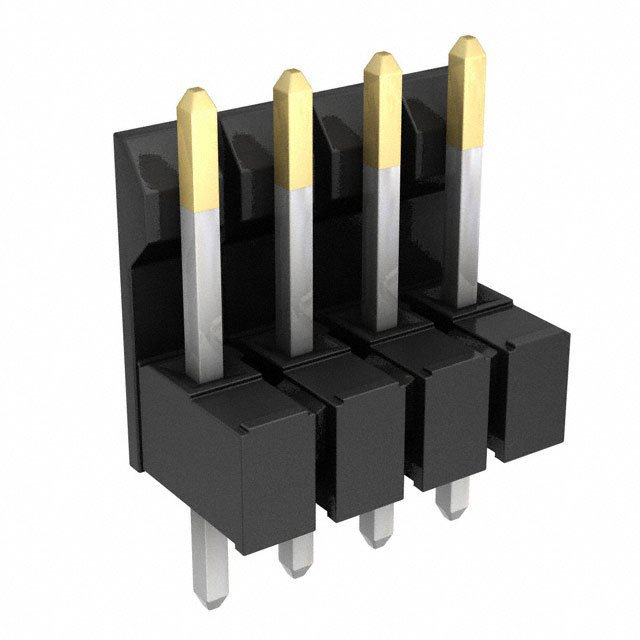

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0422271004
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	KK 100 HDR FRLK VERT 04CKT
Datasheets:	1.0422271004.pdf 2.0422271004.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	572752 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 572752 pcs

Reference Price (In US Dollars)

16000 pcs: $0.052

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.052

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0422271004

Part Number	0422271004	Manufacturer	Affinity Medical Technologies - a Molex company
Description	KK 100 HDR FRLK VERT 04CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	572752 pcs	Data sheet	1.0422271004.pdf 2.0422271004.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 42227	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.600" (15.24mm)	Other Names	0422-27-1004 042227-1004 42227-1004 422271004
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.337" (8.56mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 4 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	-	Contact Length - Post	0.180" (4.57mm)
Contact Length - Mating	0.295" (7.49mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header, Breakaway
Applications	Automotive, General Purpose, Medical, Telecommunications
