0417920515

Affinity Medical Technologies - a Molex company

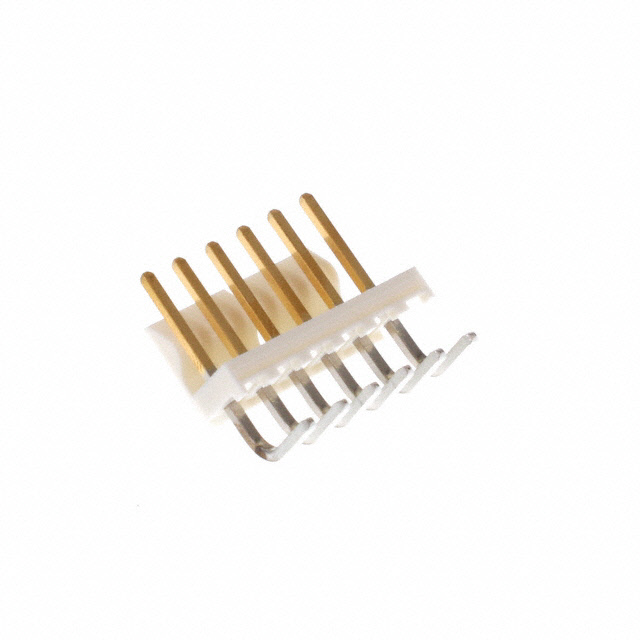

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0417920515
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	KK 156 HDR ASSY FRLK RTAN 6CKT
Datasheets:	1.0417920515.pdf 2.0417920515.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	53882 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 53882 pcs

Reference Price (In US Dollars)

1 pcs: $0.726

10 pcs: $0.658

100 pcs: $0.564

500 pcs: $0.47

1000 pcs: $0.403

5000 pcs: $0.357

10000 pcs: $0.349

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.726

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0417920515

Part Number	0417920515	Manufacturer	Affinity Medical Technologies - a Molex company
Description	KK 156 HDR ASSY FRLK RTAN 6CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	53882 pcs	Data sheet	1.0417920515.pdf 2.0417920515.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 41792	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0417-92-0515 041792-0515 0417920515-ND 41792-0515 417920515 WM20122
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.394" (10.00mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole, Right Angle 6 position 0.156" (3.96mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	-	Contact Length - Post	0.156" (3.96mm)
Contact Length - Mating	0.450" (11.43mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
