0416720199

Affinity Medical Technologies - a Molex company

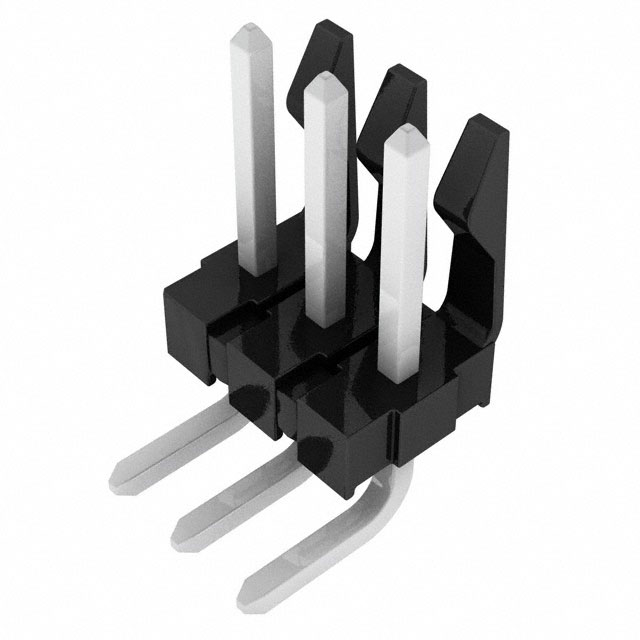

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0416720199
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	.156 FL RA BKWY HDR ASSY 3CKT
Datasheets:	0416720199.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	288143 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 288143 pcs

Reference Price (In US Dollars)

4800 pcs: $0.106

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.106

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0416720199

Part Number	0416720199	Manufacturer	Affinity Medical Technologies - a Molex company
Description	.156 FL RA BKWY HDR ASSY 3CKT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	288143 pcs	Data sheet	0416720199.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 41672	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	041672-0199 41672-0199 41672-A03G102-1 416720199
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	2	Number of Positions	3
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester	Insulation Height	0.355" (9.02mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole, Right Angle 3 position 0.156" (3.96mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.172" (4.37mm)
Contact Length - Mating	0.447" (11.35mm)	Contact Finish Thickness - Post	60.0µin (1.52µm)
Contact Finish Thickness - Mating	60.0µin (1.52µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header, Breakaway
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
