Affinity Medical Technologies - a Molex company
| Part Number | 0395332003 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|

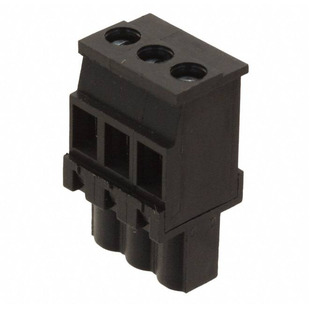

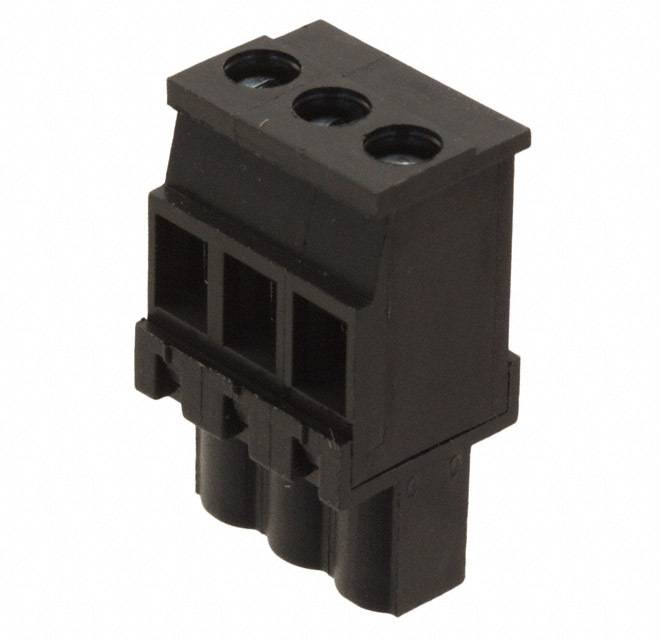

| Description | TERM BLOCK PLUG 3POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42480 pcs | Data sheet | 0395332003.pdf |
| Wire Strip Length | 5mm | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | 12-26 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 0.56 Nm (5.0 Lb-In) |
| Termination Style | Screw - Rising Cage Clamp | Series | Eurostyle ESE 39533 |
| Screw Size | - | Positions Per Level | 3 |
| Plug Wire Entry | 270° | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 039533-2003 039533-2003-E 0395332003-E 39533-2003 39533-2003-E 395332003 395332003-E WM7827 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.020" (25.91mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 3 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 270° Free Hanging (In-Line) |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Phosphor Bronze | Color | Black |
