Affinity Medical Technologies - a Molex company
| Part Number | 0395300012 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|

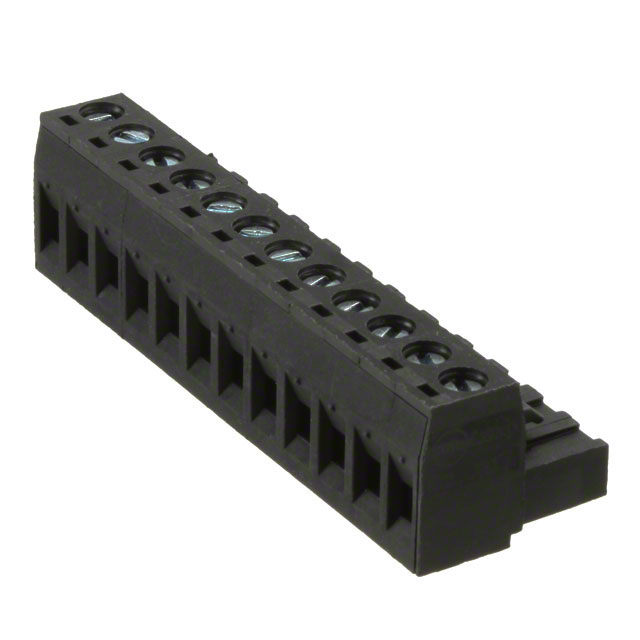

| Description | TERM BLOCK PLUG 12POS STR 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15637 pcs | Data sheet | 0395300012.pdf |
| Wire Strip Length | 5mm | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | 12-26 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 0.56 Nm (5.0 Lb-In) |
| Termination Style | Screw - Rising Cage Clamp | Series | Eurostyle ESE 39530 |
| Screw Size | M3 | Positions Per Level | 12 |
| Plug Wire Entry | 180° | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 039530-0012 039530-0012-E 0395300012-E 39530-0012 39530-0012-E 395300012 395300012-E WM7825 |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 12 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.591" (15.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 12 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
